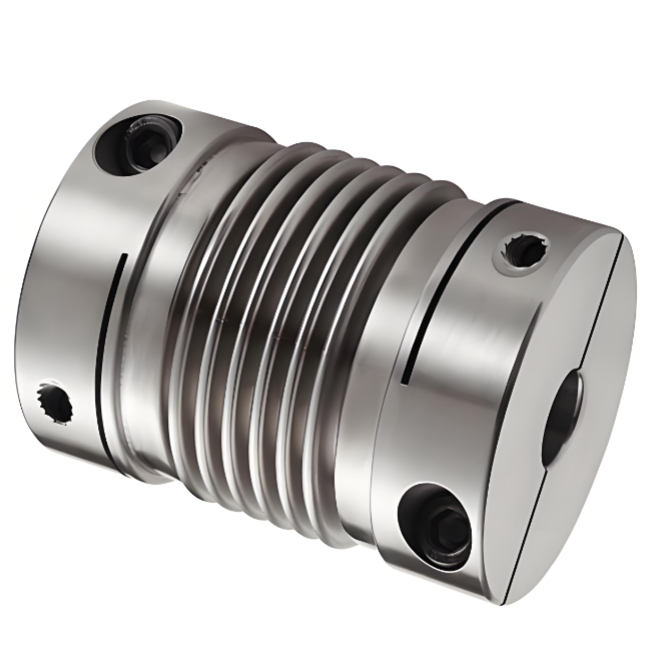

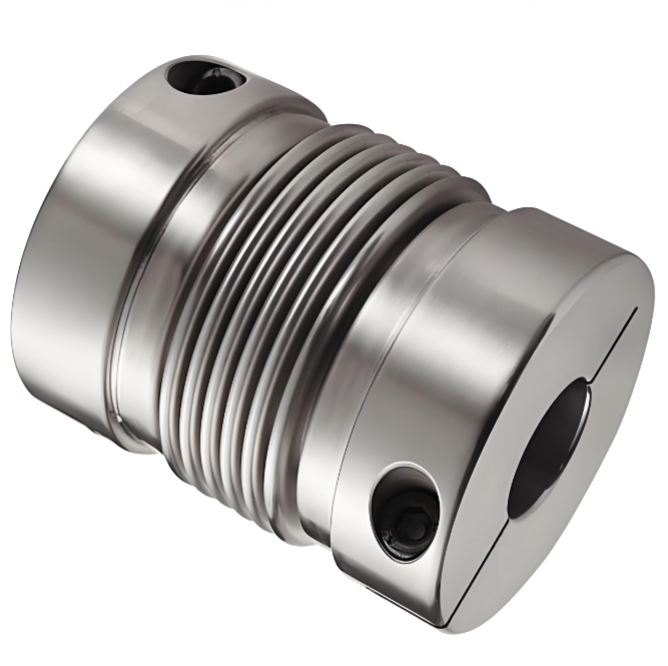

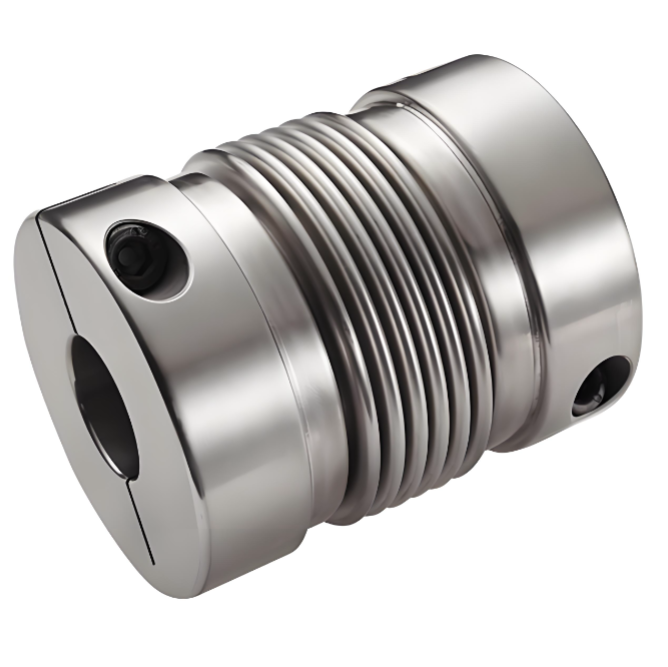

RSK-CPRCG Fortis Torsional Rigiditas Diver Follis Couplings Clamping Type

RSK-CPRCG Fortis Torsional Rigiditas Diver Follis Couplings Clamping Type

Contact Us
  • Specification
  • Describe
Specification

> Totum fit de chalybe immaculato, repugnantia optima, corrosione

> Laser welding between folles et hastile sleeve, nulla alvi occisio, apta deinceps et vice versa

> Folles compages radiales, angulares et axiales deviationes efficacius compensat

> Clamping cochlea tensis modum

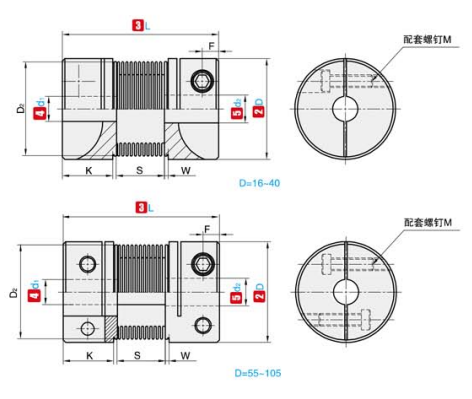

NO. D L d₁⑤d₂
(Libitum scope) 		K W S D₂ F M Fasciculus torques torques (N·m)
RSK-CPRCG 16 27 4 5 6 6.35 7 8 7.5 2 8 13.5 3 M2.5 0.8
20 32 5 6 6.35 7 8 9 9.525 10 7.2 2.8 12 18 3.5 M3 1.2
25 37 6 6.35 7 8 9 9.525 10 11 12 9.5 3 12 20.2 4.5 M3 1.2
32 42 8 9 9.525 10 11 12 12.7 14 15 8 4 18 27.2 4.5 M4 2.5
40 55 8 9 9.525 10 11 12 12.7 14 15 16 17 18 19 20 11.5 6 20 34.5 5 M5 5
55 72 10 11 12 12.7 14 15 16 17 18 19 20 22 24 25 16.5 6 27 51.9 10 M6 8
65 81 10 11 12 12.7 14 15 16 17 18 19 20 22 24 25 28 30 32 35 38 19.5 7 28 60.5 10.5 M6 8

NO. D L Rated torque licet eccentricitas Licet angulus declinationis axial deviatio licita Licet gyratorium Static vicissitudinem rigoris Momentum inertiae Pondus
N·m） mm） °） mm） rpm） N·m/rad） kg·m²） g）
RSK-CPRCG 16 27 1.2 0.1 1.5 0.3 9400 150 8.0×10⁻⁷ 23
-1
20 32 2.2 0.15 2 0.3 7600 220 2.2×10⁻⁶ 36
-1
25 37 3 0.15 2 0.5 6100 330 6.9×10⁻⁶ 75
-1.3
32 42 3.7 0.2 2 0.5 4700 490 2.1×10⁻⁵ 130
-1.3
40 55 15 0.2 2 0.7 4200 530 2.3×10⁻⁵ 265
-1.5
55 72 33 0.2 2 0.7 3900 860 3.7×10⁻⁵ 735
-1.5
65 81 80 0.2 2 0.7 3500 900 3.6×10⁻⁵ 1000
-1.5
