Specification

RSK-NGCL Drum Apparatus Copulatio cum Rota Brake est gravis officiorum coniunctio integranda destinata ad potentiam simultaneam transmissionis et functionum braking. Incorporat tympanum (discus) in iuncturam corpori, ut directam convenientiam cum tympano vel calipero vexillo rumpit. Haec coniunctio apta est ad systema coegi in materia tractandi, gruibus et medicamentis metallurgicis quae pacti consilium exigunt et effectus fractis conformantur.

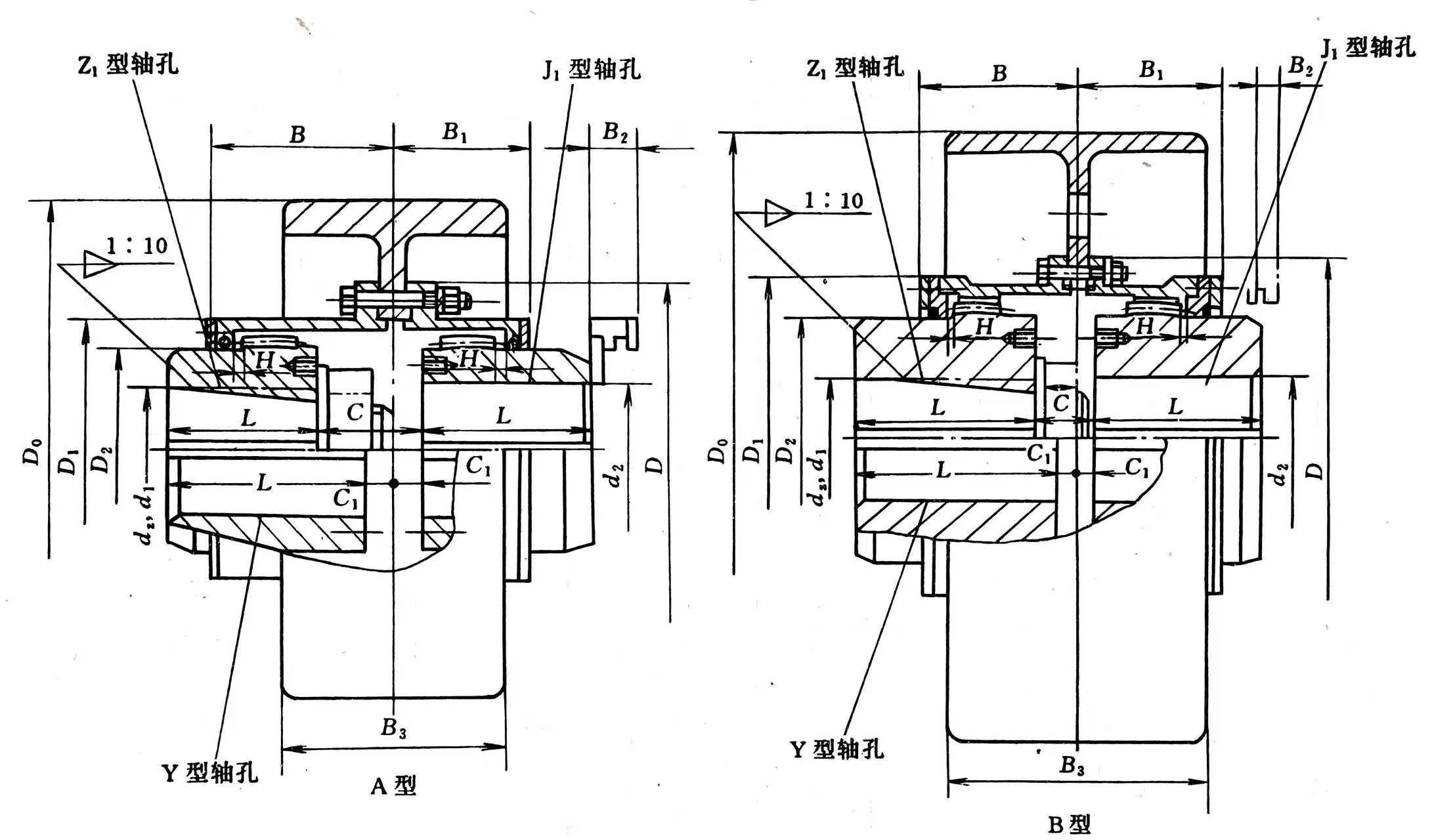

Model	Nominal Torque /N·m	Licet gyratorius Celeritas [n]	Shaft foramen Diameter		hastile foramen Longitudo L		D₀	D	D₁	D₂	C	C₁	H	B	B₁	B₂	B₃	Lubricans Grease Dosis /mL	Pondus m/ kg	Momentum De Inertia I
			d₂	d₁、d₂	Y	J₁, Z₁
NGCL1	355	4000	20~35	20、22、24	52	38	160	103	71	50	30	8	2	56	42	38	68	51	7	0.07
				25、28	62	44													7.3	0.07
				30、32、35	82	60													8	0.071
NGCL2	630	4000	25~45	25、28	62	44	160	115	83	60	36	8	2	68	48	42	68	70	9	0.079
				30、32、 35、38	82	60													9.7	0.08
				40、42、45	112	84													11	0.083
NGCL3	1000	3800	30~55	28	62	44	200	127	95	75	41	8	2	70	49	42	85	107	14.6	0.181
				30、32、 35、38	82	60													15.2	0.184
				40、42、45、48、50、 55、56	112	84													17	0.187
NGCL4	1600	3800	40~65	38	82	60	200	149	116	90	41	8	2	74	53	42	85	137	18.6	0.225
				40、42、45、48、50、 55、56	112	84													21.4	0.237
				60、63、65	142	107													23.8	0.246
NGCL5	2800	3000	45~75	40、42、45、48、50、 55、56	112	84	250	167	134	105	48	8	2.5	84	58	42	105	201	31.8	0.58
				60、63、65、70、71、75	142	107													34.4	0.609
NGCL6	4500	3000	50~90	45、48、50、55、56	112	84	250	187	153	125	49	9	2.5	85	59	42	105	238	37.2	0.714
				60、63、65、70、71、75	142	107													38.5	0.754
				80、85、90	172	132													47.6	0.795
NGCL7	6300	2400	60~100	50、55、56	112	84	315 (300)	204	170	140	53	9	2.5	93	63	42	132	298	48.8	1.17
				60、63、65、70、71、75	142	107													55.2	1.234
				80、85、90、95	172	132													61.8	1.299
				100	212	167													71.1	1.388
NGCL8	9000	1900	70~ 110	55、56	112	84	400	230	186	155	64	12	3	112	77	47	168	465	80.7	3.747
				60、63、65、70、71、75	142	107													90	3.841
				80、85、90、95	172	132													96.5	3.939
				100、110	212	167													108	4.072
NGCL9	14000	1500	80~130	60、63、65、70、71、75	142	107	500	256	212	180	71	13	3	119	80	47	210	561	128	9.427
				80、85、90、95	172	132													138	9.605
				100、110、120、125	212	167													151	9.847
				130	252	202													167	10.109

Describe

Coniunctio calces est summus torques mechanicus connector pro spiculis non collineis, utens phaleris interni/externi dentes in manicatis ut potestatem transmittat dum compensat pro angulari, radiali et axiali misalignment, ut specimen pro gravibus usibus industrialibus sicut mola ferrea, soleatus et vectores in quibus densitas et firmitas magnae potentiae cruciantur, licet ad longitudinis lubricationem et sustentationem exigat.

Quomodo operatur

Components: Duae axillae (cum dentibus calceis externis) singulis hastili coniunctae manicis (cum dentibus calces internis).

Misalignment Compensatio: Dentes calces motus permittunt, flexo ad angularis (late-ad- latus), radialis (offset), et misalignment axialem (finem-ad-finem) inter spicula.

Torque Transmissio: Alta superficies contactus inter dentes calces coronatos efficientem praebet, summus torques potentiae translatio cum rigore torsionali eximia.

Key Features & Beneficia

Princeps Torque: Capax tractandi altissima onera torques.

Foedus: vim altam ad pondus praebet rationem, in stricta spatia congruens.

Reliable: dum vitam commodat cum honesta lubricatione.

Versatile: Available in variis conformationibus (unum/duplex certamen, medietates rigidae/flexibiles) pro diversis necessitatibus.

Applications

Volvendum agit (ferrum, chartam industrium)

Pumps, fans, TRADUCTOR

Potentia generationis armorum

Tutela

Postulat periodicum lubricationem (uncturam) ad dentes calces tuendos.

Proprium alignment durante institutionem criticam ad fidem et ad diuturnitatem.
