RSK-CPFC OEM Aluminium Alloy Jaw/Spider Flexibile Shaft Fibulae genus iuncturae pro Motor Transmissio

RSK-CPFC OEM Aluminium Alloy Jaw/Spider Flexibile Shaft Fibulae genus iuncturae pro Motor Transmissio

Contact Us
  • Specification
  • Describe
Specification

> Summa corporis altae virium aluminium alloy

> Nulla backlash, idoneam pro deinceps et vicissim gyrationis

> Colloideum factum ex polyurethane, quod bonum indumenti resistentia habet

>Resistentia oleum et velit electrica, corpus medium elasticum vibrationem haurire potest

> Recompensare radiales, angulares et axiales deviationes

> Consilio removeri facilem institutionem

> Clamping cochlea tensis modum

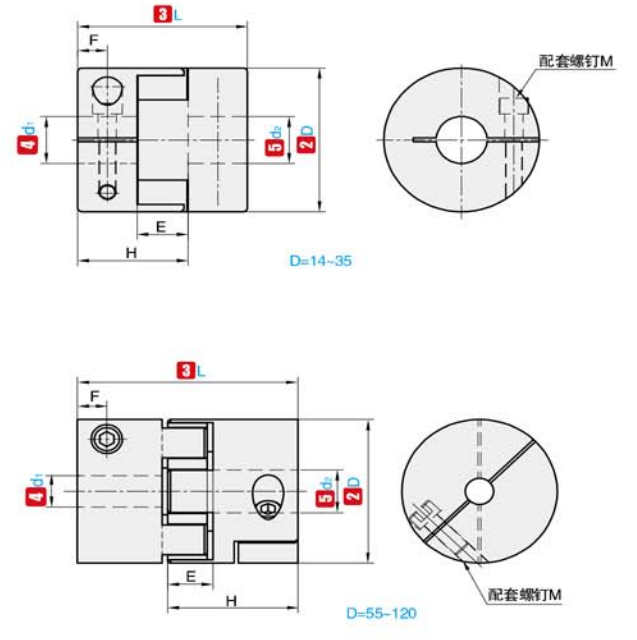

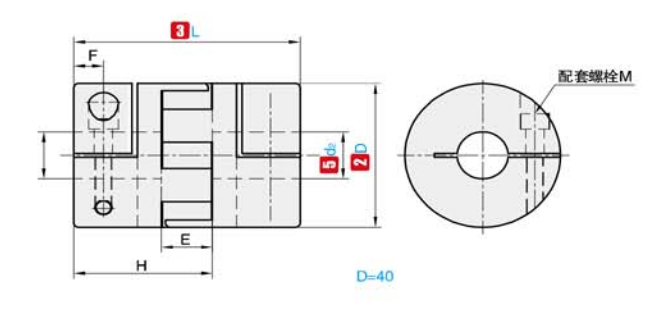

NO. D L

d₁⑤d₂

(Libitum scope)

E F H M Fasciculus torques torques (N·m)
RSK-CPFC 14 22

3 4 5 6 6.35

6.6 3.8 14.3 M2.5 0.8
20 25

3 4 5 6 6.35 7 8 9 9.525 10

8.6 4.6 16.8 M3 1.2
20 30 3 4 5 6 6.35 7 8 9 9.525 10 8.6 5.4 19.25 M3 1.2
25 30 4 5 6 7 8 9 9.525 10 11 12 11.6 4.6 20.82 M4 2.5
25 34 4 5 6 6.35 7 8 9 10 11 12 11.6 5.6 22.82 M4 2.5
30 35 5 6 6.35 7 8 9 10 11 12 12.7 14 15 16 10.9 5.9 23 M4 2.5
30 40 5 6 6.35 7 8 9 10 11 12 12.7 14 15 16 10.9 7 25.5 M4 2.5
35 50 5 6 6.35 7 8 9 10 11 12 12.7 14 15 16 17 18 19 20 . 11.5 6.5 32.1 M5 5
40 50 6 8 9 10 11 12 12.7 14 15 16 17 18 19 20 22 24 13.7 6.7 32.1 M5 5
40 55 6 8 9 10 11 12 12.7 14 15 16 17 18 19 20 22 24 13.7 7.2 34.5 M5 5
40 66 6 8 9 10 11 12 12.7 14 15 16 17 18 19 20 22 24 13.7 8.0 40.0 M5 5
55 49 10 11 12 12.7 14 15 16 17 18 19 20 22 24 25 28 30 32 16.1 6.5 32.0 M6 8
55 78 8 10 12  12.7 14 15 16 17 18 19 20 22 24 25 28 30 32 16.1 10.3 46.4 M6 8
65 90 14 15 16 17 18 19 20 22 24 25 28 30 32 35 38 40 16.7 11.9 53.5 M8 20
80 114 19 20 22 24 25 28 30 32 35 38 40 42 45 22.5 15.5 67.6 M8 20

NO. D L Rated torque licet eccentricitas Licet angulus declinationis axial deviatio licita Licet gyratorium Static vicissitudinem rigoris Momentum inertiae Pondus
N·m） mm） (°） (mm) rpm） N·m/rad） kg·m²） g）
RSK-CPFC 14 22 1.1 0.02 1 0.60 19000 46 2.0×10⁻ 7 10
20 25 2.8 0.02 1 0.60 17000 55 1.0×10⁻ 6 15
20 30 2.8 0.02 1 0.60 17000 55 1.1×10⁻ 6 19
25 30 6 0.02 1 0.60 16000 65 5.2×10⁻ 6 33
25 34 6 0.02 1 0.60 16000 65 5.2×10⁻ 6 42
30 35 6.5 0.02 1 0.60 12000 72 6.2×10⁻ 6 50
30 40 6.5 0.02 1 0.60 12000 72 6.2×10⁻ 6 60
35 50 15 0.02 1 0.60 10000 200 8.1×10⁻ 6 45
40 50 32 0.02 1 0.80 10000 450 3.8×10⁻ 5 115
40 55 32 0.02 1 0.80 10000 500 3.8×10⁻ 5 127
40 66 32 0.02 1 0.80 10000 550 3.9×10⁻ 5 154
55 49 46 0.02 1 0.80 8000 1200 1.6×10⁻ 3 241
55 78 46 0.02 1 0.80 8000 1500 1.6×10⁻ 3 341
65 90 109 0.02 1 0.80 6000 2800 3.8×10⁻ 3 583
80 114 135 0.02 1 1.00 4600 3500 1.8×10⁻ 3 1000
