Wholesale RSK-Z5 Expansion Sleeve for Ultra High Torque Transmission with High Dynamic Load Capacity High Rigidity and strong Stability

Home / Products / Obfirmo Conventus / RSK-Z5 Expansion Sleeve for Ultra High Torque Transmission with High Dynamic Load Capacity High Rigidity and strong Stability

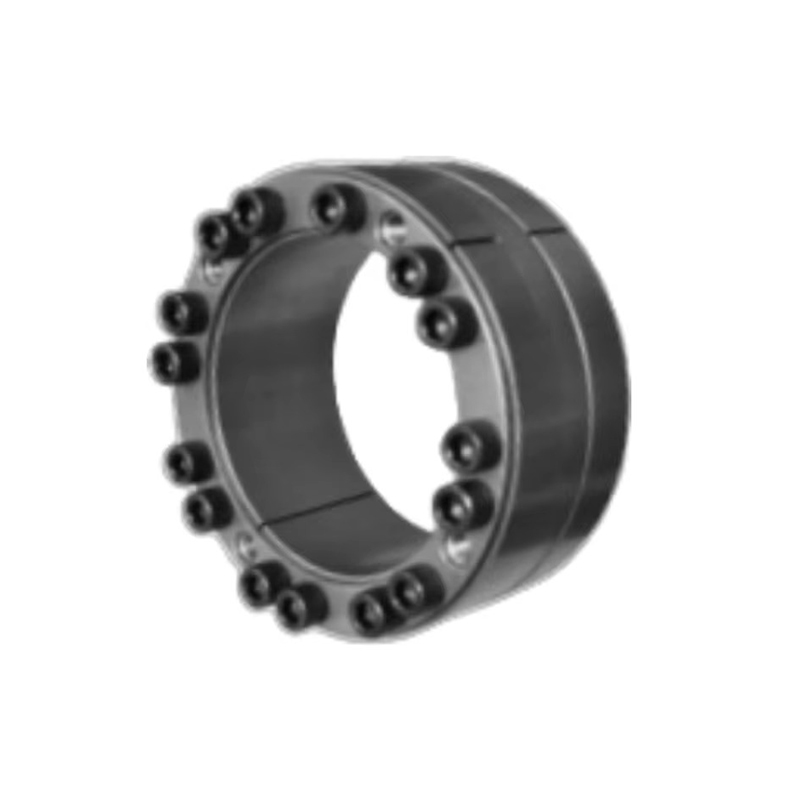

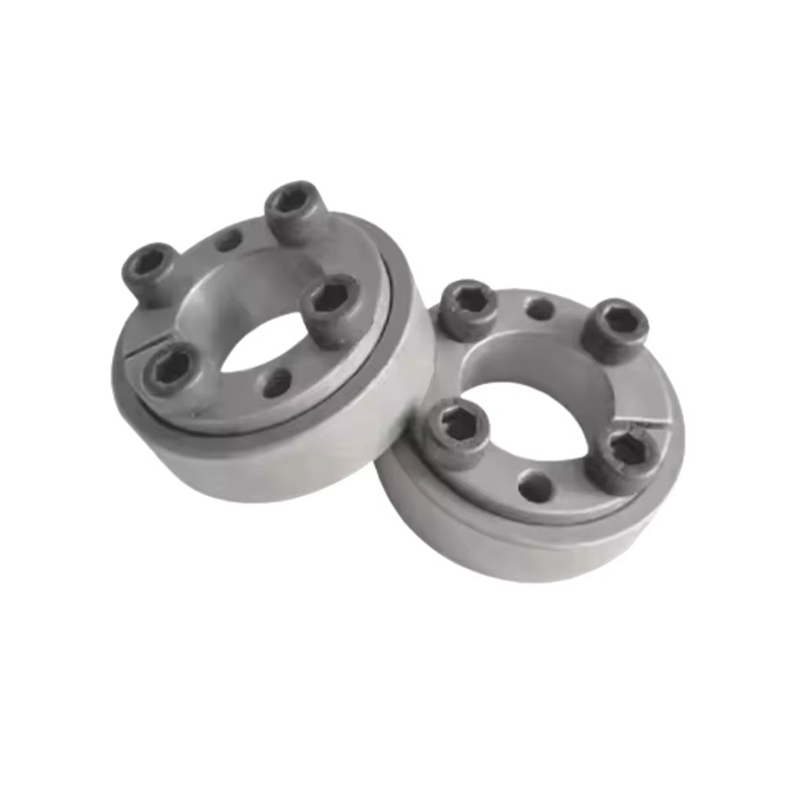

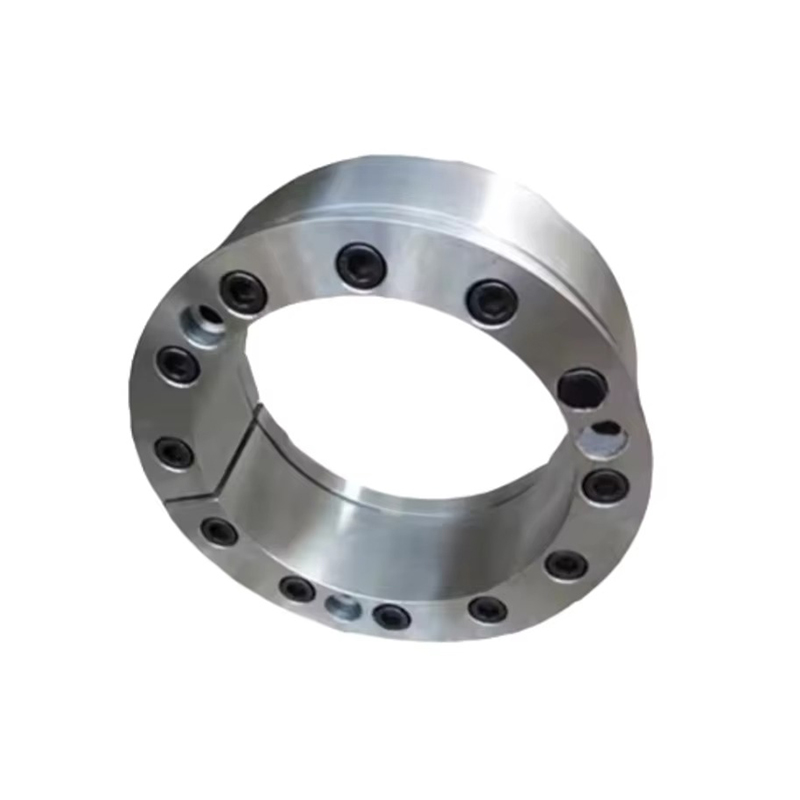

RSK-Z5 Expansion Sleeve for Ultra High Torque Transmission with High Dynamic Load Capacity High Rigidity and strong Stability

RSK-Z5 Expansion Sleeve for Ultra High Torque Transmission with High Dynamic Load Capacity High Rigidity and strong Stability

Contact Us
  • Specification
  • Describe
Specification

Size（mm） Dimensiones (mm) rated onus Contactus pressura (MPa) Obfirmo cochlea Pondus (proxime. Kg)
L1 L2 Axial (kN) Torque (N·m) Shaft (MPa) Hub (MPa) Constringendi (N·m)
100×145×65 60 77 291 14540 184 133 145 4.1
110×155×65 60 77 337 16300 180 127 145 4.4
120×165×65 60 77 382 20000 184 133 145 4.8
130×180×74 68 86 424 27500 189 136 145 6.5
140× 190×74 68 86 514 38100 225 165 145 7
150×200×74 68 86 545 38600 198 145 145 7.4
160×210×74 68 86 636 50900 230 179 145 7.8
170225×81 75 95 676 60900 217 164 230 10
180×235×81 75 95 719 61200 193 147 230 10.6
190×250×94 88 108 816 77500 183 139 230 14.3
200×260×94 88 108 920 97000 211 135 230 15
210×275×104 98 120 980 99000 178 162 355 17.5
220×285×104 98 120 990 108000 181 140 355 19.8
240×305×104 98 120 1300 156000 220 174 355 21.4
250×315×104 98 120 1340 168000 215 170 355 22
260×325×104 98 120 1420 185000 224 179 355 23
280×355×126 120 144 1560 218000 184 146 475 35.2
300×375×126 120 144 1600 241000 178 142 475 37.4
320×405×142 135 162 2050 330000 184 146 475 513
340×425×142 135 162 2080 354000 176 140 690 54.1
360×455×165 158 187 2620 480000 176 139 930 75.4
380×475×165 158 187 2670 498000 163 130 930 79
400×495×165 158 187 2750 551000 163 132 930 82.8
420×515×165 158 187 3170 646000 179 146 930 86.5
450× 555× 180 172 204 3740 861000 177 143 1200 112
480×585× 180 172 204 3990 957000 177 144 1200 119
500×605×180 172 204 3990 998000 170 140 1200 123
530×640×200 190 227 4110 1088000 149 124 1600 151
560×670×200 190 227 4360 1222000 140 125 1600 160
600×710×200 190 227 4790 1408000 159 126 1600 170






Related Product
Societas
Jiangsu Rokang Heavy Industry Technology Co., Ltd.
Jiangsu Rokang gravis Industry Technologia Co, Ltd certa bona plus quam LXXX decies Yuan, et habet quadrigis professionales talenta in mechanico consilio, praecisio vestibulum, calor curatio, glutino, etc; Societas unum finem habet integram copiam processus facilitatum et seriem qualitatis inspectionis systematum ut mensurae, physicae et chemicae, et probatio dynamicae, et capacitatem processus mechanicam comprehendens habet. Multos annos sodalitas commissa est investigationi et evolutioni et fabricationi globulorum cavearum, typus constantis velocitatis universae commissurae, genus commissurae crucis universalis, et iuncturas calces tympani. Arcam industriam-universitatis-investigationis cooperationem cum Institutis militaribus et localibus inquisitionis scientificae ac potentiae Engineering Department of PLA Naval Academiae peregit, et in agros praecisiones, sarcinas magnas et celeritatem continenter dilatavit. Producta in notam notam externam feliciter restituerunt cum praestantia observantia, et processus technologiae ad gradum internationalem provectum pervenit. Plurimum adhibitum est in levatione et translatione, machinatione metallurgica, machinis metallicis, machinis machinariis, machinis fodiendis, machinis petrochemicis, machinis textilibus, navibus militaribus, vehiculis armatis, machinationibus ferriviariis, vehiculis aliisque campis specialibus. Producti qualitas et servitia a pluribus utentibus agnita et laudata sunt, et in Europam, Americam, Russiam, Orientem Medium, Indiam et alias regiones et regiones exportantur. As ChinaSuppliers of RSK-Z5 Expansion Sleeve for Ultra High Torque Transmission with High Dynamic Load Capacity High Rigidity and strong Stability, Rokang offer Wholesale RSK-Z5 Expansion Sleeve for Ultra High Torque Transmission with High Dynamic Load Capacity High Rigidity and strong Stability. The company has always adhered to the business purpose of "quality first, honest management, and customer first". We are willing to work with you with excellent products, preferential prices and thoughtful services to create a brilliant career!
