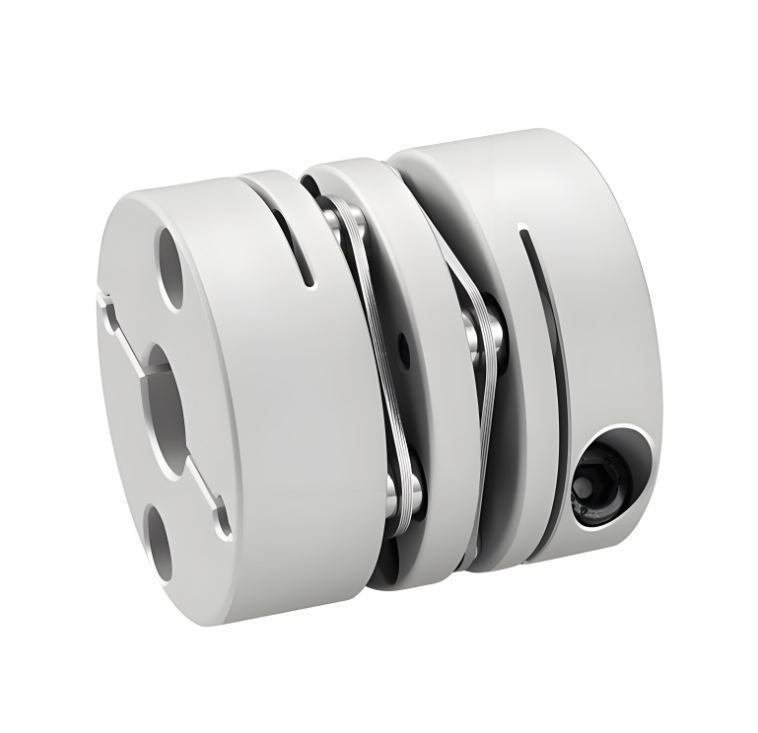

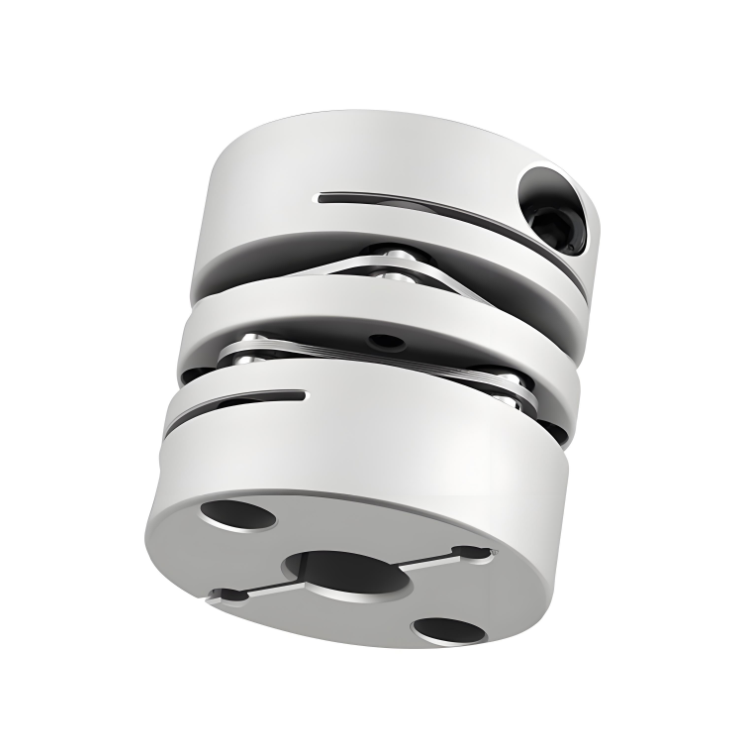

RSK-CPLF Flexibile AluminiumAlloy Diaphragma brevis Fibulae genus pro machina CNC

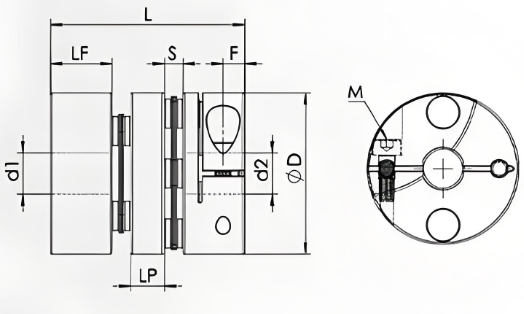

Nomen Code

D

L

Standard Interiorem Diameter(mm)

E

N

D1

F

H

M

Torque tensis (N.m)

RSK-CPLF

16.6

23

3, 4, 5, 6 .

3.6

2.2

6.5

3.3

7.5 M2.5 0 .

M2.5

0.8

21

24.5

3, 4, 5, 6 ., 6.35, 7, 8, 9, 9.525, 10

4.7

2.7

10.5

3.3

7.2

M2.5

0.8

28

32.2

5, 6, 6.35, 7, 8, 9, 9.525, 10, 11, 12, 12. 7, 14 .

6.2

3.5

15

3.85

9.5

M3

1.2

34

35

5, 6, 6.35, 7, 8, 9, 9.525, 10, 11, 12, 12. 7, 14 ., 15, 16

7.2

3.7

16.5

4.85

10.2

M4

2.5

46

44

8, 9, 9,525, 10, 11, 12, 12, 7, 14, 15, 16, 17, 18, 19, 20, 22, 24, 25;

8.4

4.6

25.5

5

13.2

M5

5

55

55

10, 11, 12, 12, 7, 14, 15, 16, 17, 18, 19, 20, 22, 24, 25, 28, 30;

11.6

5.2

31

6

16.5

M5

5

Nomen Code

D

L

Rating torque (N.m)

Patitur inclinato (mm)

Patitur sem (∠°)

Patitur articulatio deviationis (mm)

Patitur RPM

Static torsional rigor (N.m/rad)

Momentum inertiae (N.m)

Pondus (g)

RSK-CPLF

16.6

23

0.5

0.10

1.0

±0.18

9000

480

4.22x10 ^-7

12

21

24.5

1.0

0.10

1.0

±0.18

8000

750

1.11x10 ^-6

18

28

32.2

1.5

0.15

1.2

±0.18

8000

2500

4.68x10 ^-6

45

34

35

3

0.17

1.5

±0.18

8000

4200

1.1x10 ^-5

70

46

44

9

0.22

1.5

±0.25

8000

11000

3.8x10 ^-5

144

55

55

25

0.25

1.5

±0.25

8000

16500

1.6x10 ^-4

265
