Specification

Key Characteres

Coexistence of High Torque et High Damping

Caput anni protegit

Adaptat in complexu Operating Conditions

Prima Application Agri

Connexio inter machinam et alternatorem in summa potentia Diesel generantis occidit, suppressionem torsionalem vibrationis humilium frequentiam requirens et concussionem resistentem.

HYDRAULICUS systemata sentinam coegi in gravibus machinalis machinalis (excavatoriae magnae exempli gratia)

Systema transmissionis potentiae vasorum specialium, altam fidem et resistentiam inpulsa

Coegi finem instrumentorum testium summus finem, accuratam transmissionem requirens dum vibrationem a fonte potentiae segregans

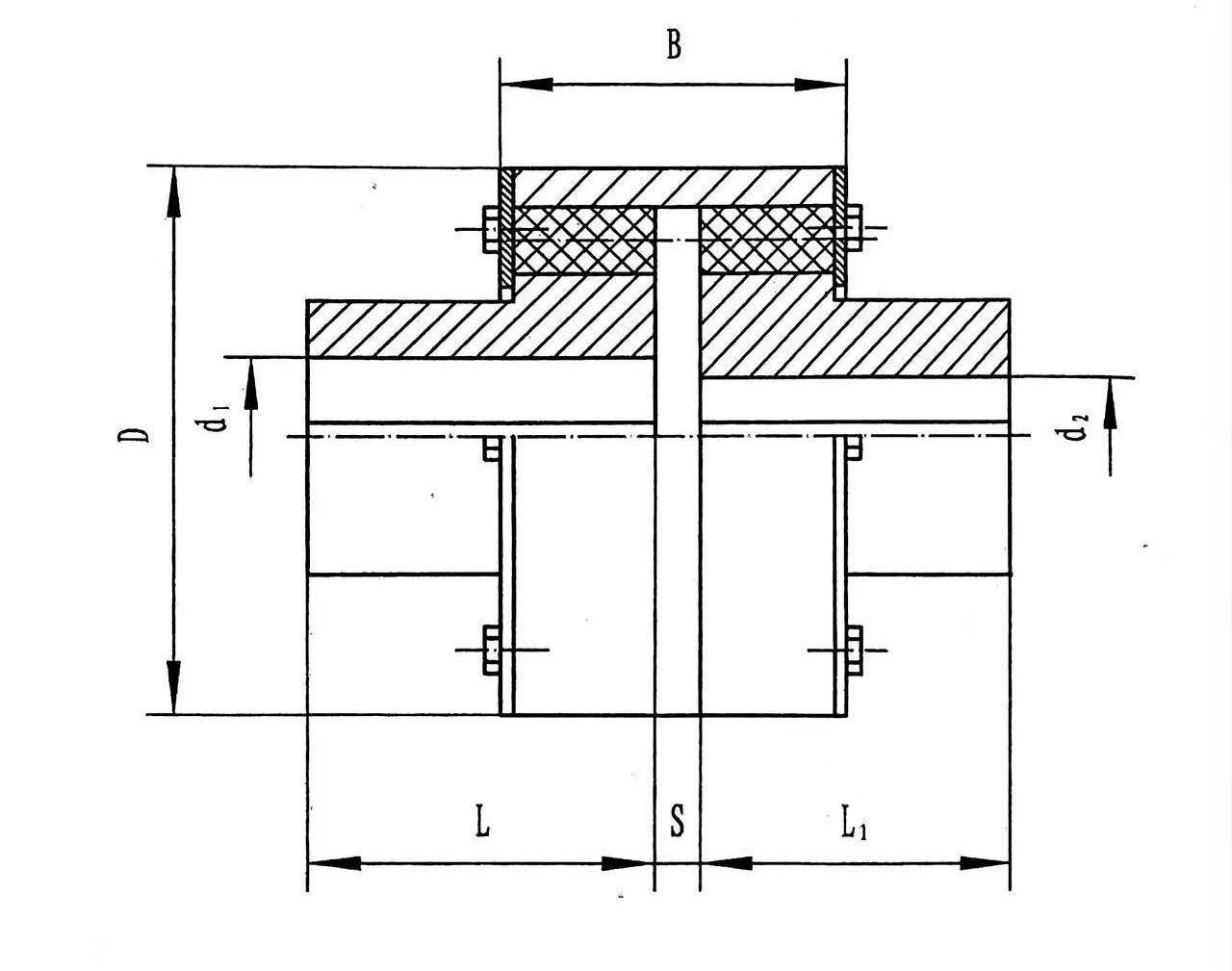

Exemplar	Nominal Torque (N·m)	licet celeritas gyratoria (rpm)	Scapus diametri (mm) d₁、d₂	Hastile longitudinis L		D	B	s	Momentum inertia ()	Pondus (kg)
				Y informibus	J informibus
RSK-LZ1	112	5000	12,14	32	27	76	42	2.5	0.001	1.53
			16,18,19	42	30					1.60
			20,22,24	52	38					1.67
RSK-LZ2	250	5000	16,18,19	42	30	90	50	2.5	0.002	2.70
			20,22,24	52	38					2.76
			25,28	62	44				0.003	2.79
			30,32	82	60					3.00
RSK-LZ3	630	4500	25,28	62	44	118	70	3	0.011	6.49
			30,32,35,38	82	60					7.05
			40,42	112	84				0.012	7.31
RSK-LZ4	1800	4200	40,42,45,48,50,55,56	112	84	158	90	4	0.044	16.20
			60	142	107				0.045	15.25
RSK-LZ5	4500	4000	50,55,56	112	84	192	90	4	0.100	24.82
			60,63,65,70,71,75	142	107				0.107	27.02
			80	172	132				0.108	25.44
RSK-LZ6	8000	3300	60,63,65,70,71,75	142	107	230	112	5	0.238	40.89
			80,85,90,95	172	132				0.242	40.15
RSK-LZ7	11200	2900	70,71,75	142	107	260	112	5	0.406	54.93
			80,85,90,95	172	132				0.428	59.14
			100,110	212	167				0.443	59.60
RSK-LZ8	18000	2500	80,85,90,95	172	132	300	128	6	0.860	89.35
			100,110,120,125	212	167				0.911	94.67
			130	252	202				0.908	87.43
RSK-LZ9	25000	2300	90,95	172	132	335	150	7	1.559	113.9
			100,110,120,125	212	167				1.678	138.1
			130,140,150	252	202				1.733	136.6

Exemplar	Nominal Torque (N·m)	licet celeritas gyratoria (rpm)	Scapus diametri (mm) d₁、d₂	Hastile longitudinis L		D	B	s	Momentum inertia (	Pondus (kg)
Exemplar	Nominal Torque (N·m)	licet celeritas gyratoria (rpm)	Scapus diametri (mm) d₁、d₂	Y informibus	J informibus	D	B	s	Momentum inertia (	Pondus (kg)
RSK-LZ10	31500	2100	100,110,120,125	212	167	355	152	8	2.236	165.5
			130,140,150	252	202				2.362	169.3
			160,170	302	242				2.422	164.0
RSK-LZ11	40000	2000	110,120,125	212	167	380	172	8	3.054	190.9
			130,140,150	252	202				3.249	203.1
			160,170,180	302	242				3.369	202.1
RSK-LZ12	630000	1700	130,140,150	252	202	445	182	8	6.146	288.5
			160,170,180	302	242				6.432	296.6
			190,200	352	282				6.524	288.0
RSK-LZ13	100000	1500	150	252	202	515	218	8	12.76	413.6
			160,170,180	302	242				13.62	469.2
			190,200,220	352	282				14.19	480.0
			240	410	330				13.98	436.1
RSK-LZ14	125000	1400	170,180	302	242	560	218	8	19.90	581.5
			190,200,220	352	282				21.17	621.7
			240,250,260	410	330				21.67	599.4
RSK-LZ15	160000	1300	190,200,220	352	282	590	240	10	28.08	736.9
			240,250,260	410	330				29.18	730.5
			280,300	470	380				29.52	702.1
RSK-LZ16	250000	1000	220	352	282	695	265	10	56.21	1045
			240,250,260	410	330				60.05	1129
			280,300,320;	470	380				60.56	1144
			340	550	450				62.47	1064
RSK-LZ17	355000	950	240,250,260	410	330	770	285	10	105.5	1500
			280,300,320;	470	380				102.3	1557
			340,360,380	550	450				106.0	1535
RSK-LZ18	450000	850	250,260	410	330	860	300	13	152.3	1902
			280,300,320;	470	380				161.5	2025
			340,360,380	550	450				169.9	2062
			400,420	650	540				175.4	2029
RSK-LZ19	630000	750	280,300,320;	470	380	970	322	14	283.7	2818
			340,360,380	550	450				303.4	2963
			400,420,440,450	650	540				323.2	3068
RSK-LZ20	1120000	650	320,	470	380	1160	355	15	581.2	4010
			340,360,380	550	450				624.5	4426
			400,420,440,450,460,480,500	650	540				669.4	4715
RSK-LZ21	1800000	530	380	550	450	1440	360	18	1565	7293
			400,420,440,450,460,480,500	650	540				1715	8228
			530,560,600,630	800	680				1880	8699
RSK-LZ22	2240000	500	420,440,450,460,480,500	650	540	1520	405	19	2338	9736
			530,560,600,630	800	680				2596	10631
			670,710,750	—	780				2522	9473
RSK-LZ23	2800000	460	480,500	650	540	1640	440	20	3490	11946
			530,560,600,630	800	680				3972	13822
			670,710,750	—	780				3949	12826
			800,850	—	880				3982	12095

Describe

Coronatus/Rectus Apparatus Mesh: Solebat mittere torques altas et magnas angulum praebere, magna obsessio emendae facultatem.

Flexible Pin Assembly: Typically arranged on the end face or circumferentially around the gear sleeve, acting as a secondary or parallel force transmission/damping path. Munera primaria eius includere possunt:

Summus frequentia absorbens vibrationes et incursus sarcinas muniens calces dentium.

Proviso mollis pulvinar in start-up et braking, dapibus torque in anni.

Providens additional torsional debilitare, dynamicas notas systematis coegi emendare.

Basic Structure

Main Force Transmission Path: Two flange half-couplings with internal (or external) gears mesh with an intermediate gear sleeve featuring crowned external (or internal) gears. Haec prima Aureus transmissionis et misalignment emendam mechanismum format.

Path auxiliaris Damping: Annulus nylonis (vel stannum chalybis) fibulae additur inter manicam calcem et unam bracteam vel inter duas flangas. Hae fibulae cum rubber/polyurethano elastomis aptatae sunt. Haec pars scaenam debilitationem elasticam parallelam constituit.

Lubrication and Sealing: The gear teeth require good lubrication (grease or oil), while the pin section is typically designed to be lubrication-free. Tota igitur copulatio complexu compartmentali obsignatio requirit ne ducatus contagione elementorum elasticorum.

Effectus structuralis:

The outer edges of the two half coupling flanges and the inner edge of the outer sleeve are made into half element shaped grooves with the same radius, combined to form column pin holes for embedding column pins. The driving shaft half coupling drives the outer sleeve through the column pin, and the outer sleeve drives the driven shaft half coupling to rotate through the column pin to transmit torque.

~ 70 .

Key Characteres

Coexistence of High Torque and High Damping: Theoretically capable of simultaneously meeting the dual stringent demands of heavy-duty transmission and isolation of strong impact/vibration.

Protects Core Gears: The flexible pins act as a "first line of defense," absorbing most transient shocks, potentially significantly extending the service life of the expensive gear sleeve.

Adapts to Complex Operating Conditions: May be suitable for applications with severe torque fluctuations, frequent start-stop cycles, or the coexistence of misalignment and vibration.

Prima Application Agri

Connection between engine and alternator in high-power diesel generator sets, requiring suppression of low-frequency torsional vibration and withstanding shock.

HYDRAULICUS systemata sentinam coegi in gravi machinarum machinatione (v.g., magna excavatoria).

Potestas systemata tradendi vasorum specializatorum, altam fidem et concussionem resistentiae requirens.

Expellere finem summus terminus armorum testium, accuratam transmissionem requirens dum vibrationem a fonte potentiae segregans.
