RSK-BJCF Rokang R&D pila custodia CV iuncturam universalem pro industria apparatibus

Type

Nominal Torque (N·m)

Lassitudo Torque (N·m)

Operans Anglus licita

Expansio

Momentum Inertiae GD³ J 10⁻⁵ (kg·m²)

L=500

L=1000

Omnis C plus longitudinis

In rotatione

In reliquum

Solidum Shaft

cava Shaft

Solidum Shaft

cava Shaft

BJ75CF

1520

588

25°

38°

±10

14.8

29.9

0.12

0.96

BJ95CF

2500

1127

25°

38°

±10

32.6

39.4

0.25

0.96

BJ100CF

3724

1420

25°

38°

±10

51.5

65.2

0.32

2.1

BJ125CF

5782

2744

25°

38°

±10

109

122

0.79

2.1

BJ150CF

11564

4704

25°

38°

±15

263

314

1.93

5.2

BJ175CF

15680

6713

25°

38°

±15

469

567

2.80

8.5

BJ200CF

23912

11172

25°

38°

±15

964

1053

5.50

17.8

BJ225CF

29694

14700

25°

38°

±15

1450

1678

7.40

17.8

BJ250CF

42238

20678

25°

38°

±20

2245

2726

12.6

54

BJ300CF

63112

29106

25°

38°

±20

4576

5131

20.2

54

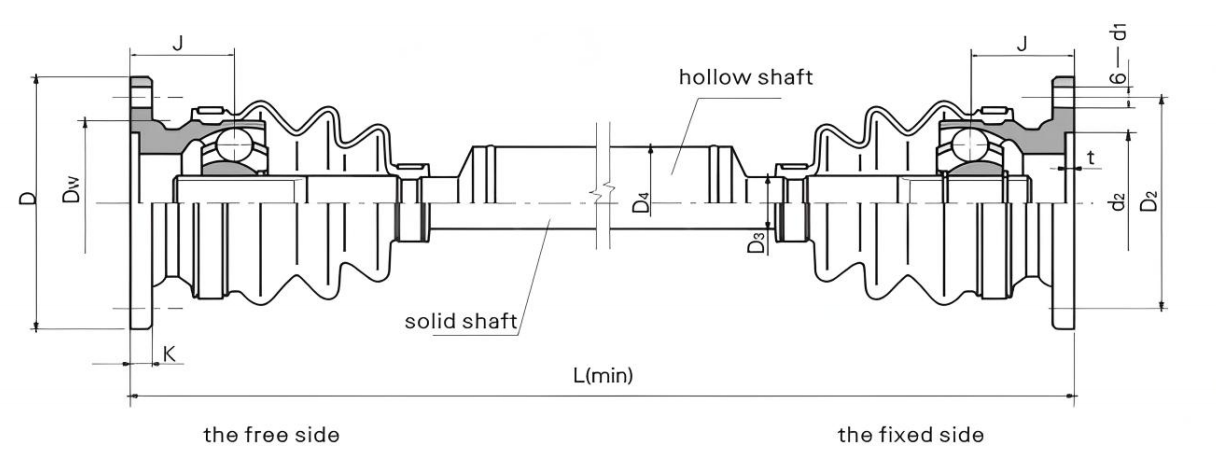

Type

Dw

D

Dz

K

t

d1

dz *

J

Solidum Shaft D3

cava Shaft D4

L(min)

Solidum Shaft

cava Shaft

BJ75CF

68.5

118

97

8

3

10.5

620 ^0.074

40

22

50

240

545

BJ95CF

84.5

136

110

10

3

12.5

700 ^0.074

46

27.5

50

290

550

BJ100CF

90

154

125

10

3

14.5

800 ^0.087

47

29.75

60

305

550

BJ125CF

112.5

179

150

10

3.5

14.5

1020 ^0.087

55

36.75

60

375

655

BJ150CF

135

192

165.1

12

3.5

14.5

1100 ^0.087

76

46

76

420

785

BJ175CF

158

215

185

15

5

17

125 ^0.10 ​

83

52

89

470

885

BJ200CF

185

250

215

16

5

19

140 ^0.10 ​

95

60

102

540

905

BJ225CF

206

265

228

18

5

21

155 ^0.10

105

66

102

580

905

BJ250CF

230

295

260

20

6

23

160 ^0.10

120

75

140

650

1000

BJ300CF

266.7

355

318

22

6

25

185 ^0.115

140

84

140

715

1000
