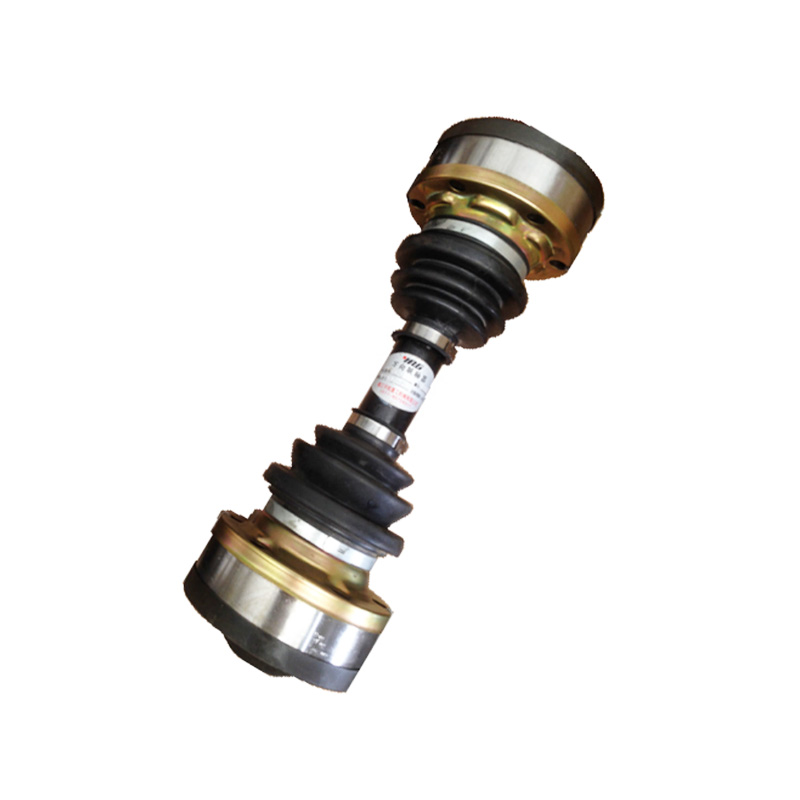

RSK-RQL-D High perficientur CV Join for Power Transmission

RSK-RQL-D High perficientur CV Join for Power Transmission

Contact Us
  • Specification
  • Describe
Specification

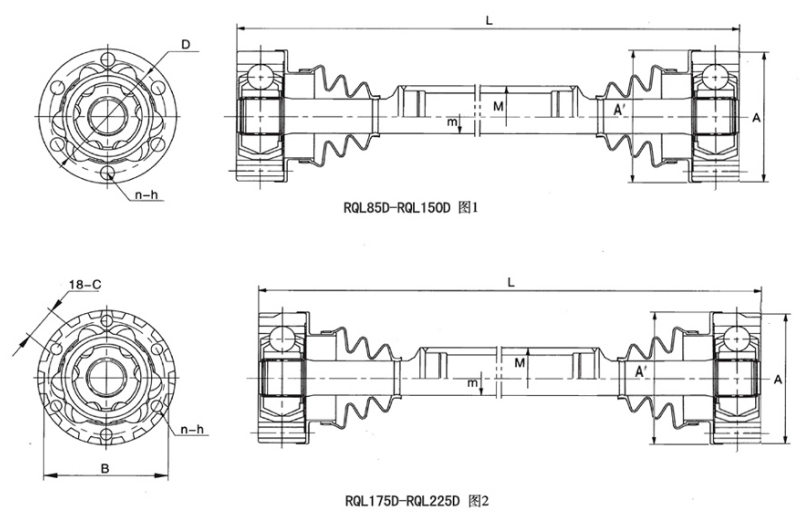

Model Legend A A' Externi dentes Fulmen Holes m M L(min)
B C D(js11) n-h* Per axem iuncta emissiones Per axem iuncta emissiones
RQL85D 1 86 -0.046 88 74 6-8.5 25 50 220 400
RQL95D 1 100 -0.054 103 86 6-8.5 30 50 250 450
RQL105D 1 108 -0.054 111 94 6-10.5 35 50 250 505
RQL125D 1 128 -0.063 132 108 6-12.5 40 60 300 605
RQL150D 1 146 -0.063 151 124 6-12.5 50 76 350 705
RQL175D 2 168 -0.100 172 158.5 42.4 -0.15 140 6-15.5 55 89 300 808
RQL200D 2 192 -0.115 196 180 16.25 -0.15 159 6-15.5 65 102 335 805
RQL225D 2 215 -0.115 220 203 54.7 -0.15 180 6-15.5 70 102 375 805

Model
Celeritate licita
rpm 		Licet Angulus Tower Sigillum Expansion Maxime licet Torque
N ·m 		Momentum Inertiae (kg m²) Pondus (kg)
L=500 100 per extensionem L mm L=500 100 per extensionem L mm
Cum stationarius Cum Rotating 0° 20° Dynamic Torque Static Torque Per axem iuncta emissiones Per axem iuncta emissiones Per axem iuncta emissiones Per axem iuncta emissiones
RQL85D 2000 25° 20° ±20 ±12 620 1600 2.6×10-³ 2.9×10-³ 0.0310-³ 0.28×10-³ 3.8 4.1 0.39 0.55
RQL95D 2000 25° 20° ±25 ±15 1160 2700 5.7×10-³ 6.1×10-³ 6.1×10-³ 0.28×10-³ 5.9 6.3 0.56 0.55
RQL105D 2000 25° 20° ±25 ±15 1700 3500 5.7×10-³ 6.1x10-³ 6.1×10-³ 0.28×10-³ 59 6.3 0.56 0.55
RQL125D 2000 25° 20° ±35 ±20 2750 5780 1910-³ 19.5x10-³ 19.5×10-³ 0.52×10-³ 12 12.5 0.99 0.68
RQL150D 2000 25° 20° ±40 ±23 4800 11500 42×10-³ 43×10-³ 43×10-³ 1.28×10-³ 21 21.6 1.54 1.04
RQL175D 2000 25° 20° ±50 ±26 6800 15600 68×10-³ 71×10-³ 71×10-³ 2.13×10-³ 28 29 1.86 1.23
RQL200D 2000 25° 20* ± 55 ±30 11200 23500 13910-³ 140×10-³ 140×10-³ 4.12×10-³ 42 44 2.60 1.85
ROL225D 2000 25° 20° ± 60 ± 34 14700 29000 230×10-³ 232×10-³ 232×10-³ 4.86x10-³ 55 461 3.02 2.27
