Name: RSK-GIICLZ Drum Apparatus Copulatio Angusta Type Medium Shaft pro gravibus onus potentiae tradendae applications
Rating: 5 (99 reviews)

Specificatio

RSK-GIICLZ Type Intermedia Shaft Drum Apparatus Copulatio est auctus variantium seriei GICLZ, specie ad grave officium destinatum, systemata ultra-longum spatium coegi. Hoc exemplar lineamenta subsidia in locis criticis sicut in robore media vecte et incrassata armatura anulum praebes, facultatem et ictum resistentiam superioribus torques praebens. Apta est ad vim transmissionis applicationes graves, cum severioribus exigentiis ad fidem, servitium vitae, et extremam misalignmentam emendam, ut metallurgicorum continuum probi, portus grues, magnarum fodiendarum fodiendarum.

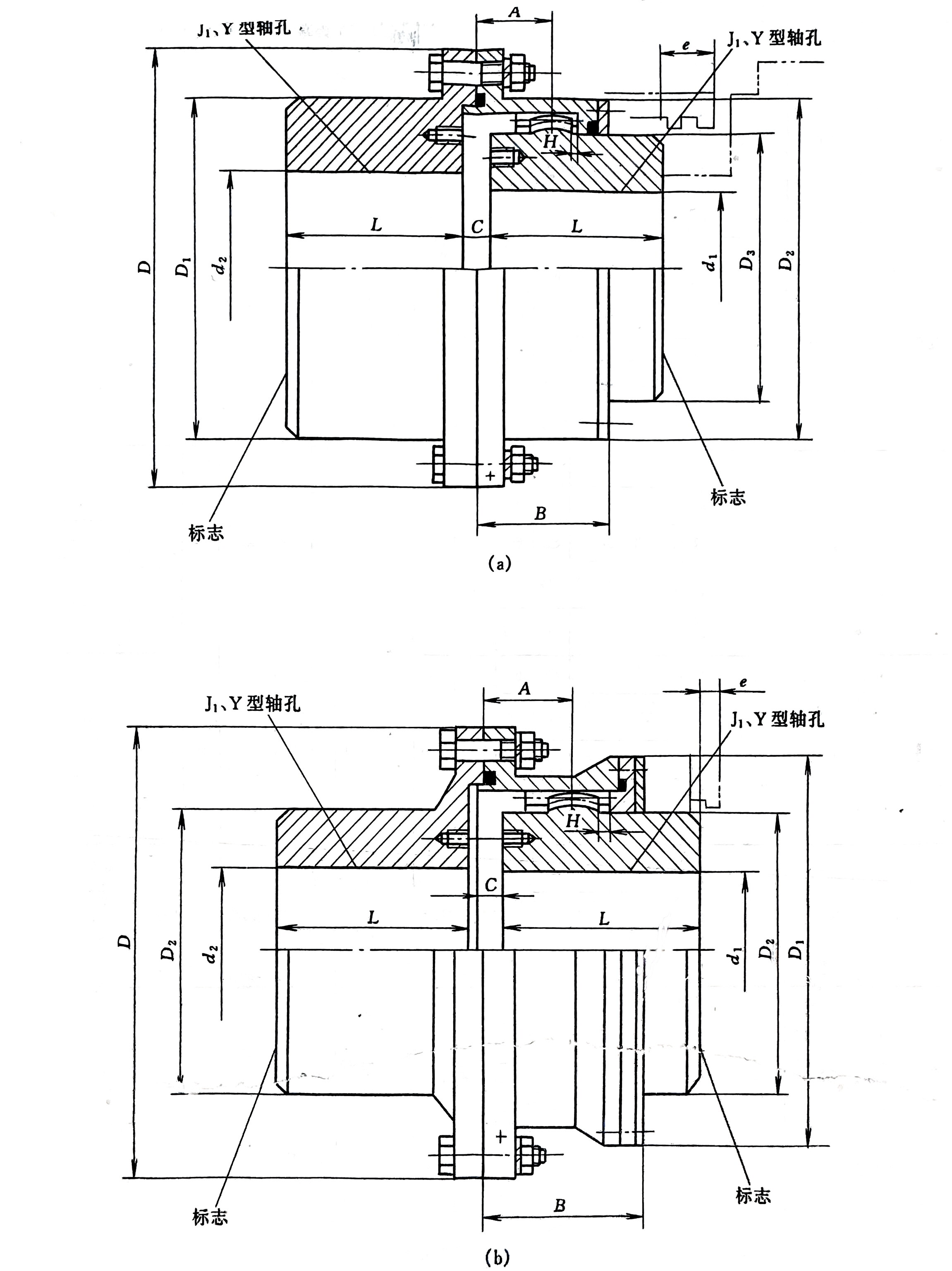

Model	Nominal Torque Tn/N.m	Celeritate licita n/r.min-1	Axialis foraminis diametri d1\d2	Axialis longitudo L		D	D1	D2	D3	C	H	A	B	e	Ducatus dosis /ml	Massa m/kg	Momentum inertiae I/kg.m2
				Y	J1
GIICLZ1	400	4000	16,18,19	42	--	103	71	71	50	8	2	18	38	38	31	3.5	0.016
			20,22,24	52	38											3.3	0.015
			25,28	62	44											3.5	0.016
			30,32,35,38	82	60											4.1	0.02
			40,42,45,48,50	112	84											5.7	0.028
GIICLZ2	710	4000	20,22,24	52	38	115	83	83	60	8	2	21	44	42	42	5.3	0.027
			25,28	62	44											4.8	0.025
			30,32,35,38	82	60											5.7	0.028
			40,42,45,48,50,55,56	112	84											7.2	0.032
			60	142	107											9.2	0.04
GIICLZ3	1120	4000	22,24	52	38	127	95	95	75	8	2	22	45	42	42	3.8	0.036
			25,28	62	44											7.8	0.044
			30,32,35,38	82	60											7.6	0.044
			40,42,45,48,50,55,56	112	84											9.8	0.053
			60,63,65,70	142	107											12.5	0.067
GIICLZ4	1800	4000	38	82	60	149	116	116	90	8	2	24.5	49	42	53	10.5	0.085
			40,42,45,48,50,55,56	112	84											13.5	0.102
			60,63,65,70,71,75	142	107											16.5	0.156
			80	172	132											19.4	0.195
GIICLZ5	3150	4000	40,42,45,48,50,55,56	112	84	167	134	134	105	10	2.5	27.5	54	42	77	18.1	0.176
			60,63,65,70,71,75	142	107											23.1	0.207
			80,85,90	172	132											28.5	0.25
GIICLZ6	5000	4000	45,48,50,55,56	112	84	187	153	153	125	10	2.5	28	55	42	91	23.9	0.3
			60,63,65,70,71,75	142	107											29.3	0.356
			80,85,90,95	172	132											35.4	0.417
			100,105	212	167											36.2	0.426
GIICLZ7	7100	3750	50,55,56	112	84	204	170	170	140	10	2.5	30	59	42	108	29.6	0.46
			60,63,65,70,71,75	142	107											36.3	0.53
			80,85,90,95	172	132											43.8	0.63
			100,105,110,115	212	167											54.3	0.76
GIICLZ8	10000	3300	55,56	112	84	230	186	186	155	12	3	33.5	71	47	161	37.8	0.73
			60,63,65,70,71,75	142	107											46.1	0.86
			80,85,90,95	172	132											54.9	0.1
			100,110,115,120,125	212	167											67.4	1.19
GIICLZ9	16000	3000	65,70,71,75	142	107	256	222	212	180	12	3	34.5	37	47	184	60	1.43
			80,85,90,95	172	132											71.8	1.66
			100,110,120,125	212	167											88	2.0
			130,135, 140, 150	252	202											104.4	2.3
GIICLZ10	22400	2650	65,70,71,75	142	107	287	239	239	200	14	3.5	39	82	47	276	76.1	2.32
			80,85,90,95	172	132											91.1	2.7
			100,110,120,125	212	167											111.4	2.74
			130,135, 140, 150	252	202											133.5	4.9
GIICLZ11	35500	2350	110,120,125	212	167	325	250	276	235	14	3.5	40.5	85	47	322	137	5.64
			130,140,150	252	202											162.4	6.5
			160,170,175	302	242											193	9.56
GIICLZ12	50000	1850	130,140,150	252	202	362	286	313	270	16	4	44.5	95	49	404	212.8	11.05
			160,170,180	302	242											268	12.37
			190,200	352	282											290	15.72
GIICLZ13	71000	1850	150	252	242	412	322	350	300	18	4.5	49	104	49	585	272.3	15.72
			160,170,180,185	302	282											320	18.14
			190,200,220,225	352	330											370	25.36
GIICLZ14	112000	3300	70,180,185	302	282	462	420	335	--	22	5.5	86	148	63	1600	389	27.6
			190,200,220	352	330											438	30.7
			240,250	410	380											509	34.4
GIICLZ15	180000	1500	190,200,220	352	282	512	470	380	--	22	5.5	91	158	63	2100	566	49.7
			240,250,260	410	330											650	55.9
			280,295	470	380											740	62.3
GIICLZ16	250000	1300	220	352	282	580	430	430	--	28	7	104.5	177	67	2500	751	84.8
			240,250,260	410	330											857	94.9
			280,300,320	470	380											974	105.4
GIICLZ17	355000	1200	250,260	410	330	644	582	490	--	28	7	99	182	67	2700	1110	155.3
			280,290,300,320	470	380											1255	173
			340,360,365	550	450											1465	195
GIICLZ18	500000	1050	280,290,300,320	470	380	726	658	540	--	28	8	111	215	75	3900	1580	278
			340,360,380	550	450											1830	315
			400	650	540											2160	362
GIICLZ19	710000	950	300,320	470	380	818	748	630	--	32	9	116	220	75	5000	2115	490
			340,360,380	550	450											2457	558
			400,420,440,450,460	650	540											2892	645
GIICLZ20	1000000	800	360,380	550	450	928	838	720	--	32	10.5	123.5	235	75	6200	3223	960
			400,420,440,450,460	650	540											3793	1109
			480,500
			530,540	800	680											4680	1340
GIICLZ21	1400000	750	400,420,440,450,460	650	540	1022	928	810	--	40	11.5	127.5	245	75	7000	4780	1740
			480.500
			530,560,600	800	680											5905	2111
GIICLZ22	1800000	650	450,460,480,500	650	540	1134	1036	915	--	40	13	131	255	75	8700	6069	2805
			530,560,600,630	800	680
			670,680	900	780											7504	3409
GIICLZ23	2500000	600	530,560,600,630	800	680	1282	1178	1030	--	50	14.5	149.5	290	80	15000	9633	5663
			670,700,710,750,770	900	780											11133	6555
GIICLZ24	3550000	550	560,600,650	800	680	1428	1322	1175	--	50	16.5	158.5	305	80	18000	12460	9322
			670,710,750	900	780											14465	10731
			800,850	1000	880											16110	11905
GIICLZ25	5000000	460	670,700,710,750	900	780	1644	1538	1390	--	50	19	162.5	310	80	23000	19837	20697
			800,850	1000	880											22381	23346
			900,950	--	980											24765	25652
			10001040		1100											27797	28793

Describere

I. Caput Commoda (Ad Calcar Apparatus Couplings)

Optimum angularis et aculeis misalignment Compensation

Barreled Design: Exteriores margines dentium externorum in sphaericam figuram (ostelam) machinantur, ampliores backlash praebent.
Effectum: Permittite dentes internos et externos ad reticulum in angulis maioribus et quasdam exsertiones radiales accommodat. De more, emenda angularis 1°30 attingere potest, et emendatio radialis insigniter melior est quam iuncturas calces calcar. Haec utilitas praecipua est eius.

High Load Capacity, Low gere, Long Service Life

Contactus superficies: Sub misalignment dentium doliolum superficiei contactum conservant, ora onerantium et accentus communium in calcaribus dentium vitantes.
Efficax Lond Distributio: Onus aequius distribuitur per latitudinem dentem, pressionem per unitatem aream minuendo.
Effectum: Magnum auget onus iuncturae capacitatis et resistentiae concussae dum minuit lapsum et extendit vitam servitutis.

Lorem Gratia diei et noctis et sui centrum Capability

Proprietas meshing sphaerica dentium doliolorum praebet gradum "aptatis propriae." Potest sponte accommodare ad minora misalignment causata per errores institutionis vel funda- menta componenda, custodiens gestus armorum connexorum.

II. Structural et aliae Characteres

Foedus Structure, High Torque Transmission

Ex eadem magnitudine, doliolum calces iuncturas superiores torques transmittere potest, altum efficientiam volumetric offerens.

Lubricationem requirit et signationem

Lubricatio: Promobili coitu rigido, eius superficies dente indigent bonam lubricationem (typice oleum vel unctum) ad extenuandum laborem et calorem generationis.
Obsignatio: apparatum Latinum includunt sigilla O-annulorum vel sigillorum labri ne ducatus lacus et introitus contaminantium externorum. Fiducia sigilli directe impingit vitae spatium copulationis.

Altus Reliability, Idoneus conditionibus duris

Ob earum firmitatem, commissurae RSK-GIICL late adhibentur in applicationibus quae ad continuam operationem pertinent, onera gravia, media ad celeritates altas et leves misalignationes. Exempla includunt: mola metallurgia volventia, machinamenta fodienda, instrumenta elevatio gravia, systemata marina impulsus et generantia.
