Specification

Ad commissuras calces connexas per hastilem vel manicam intermediam, celeritas critica verificabitur cum scapus intermedius vel manica nimis longus, gravis, vel ad celeritates rotationales altas operatur.

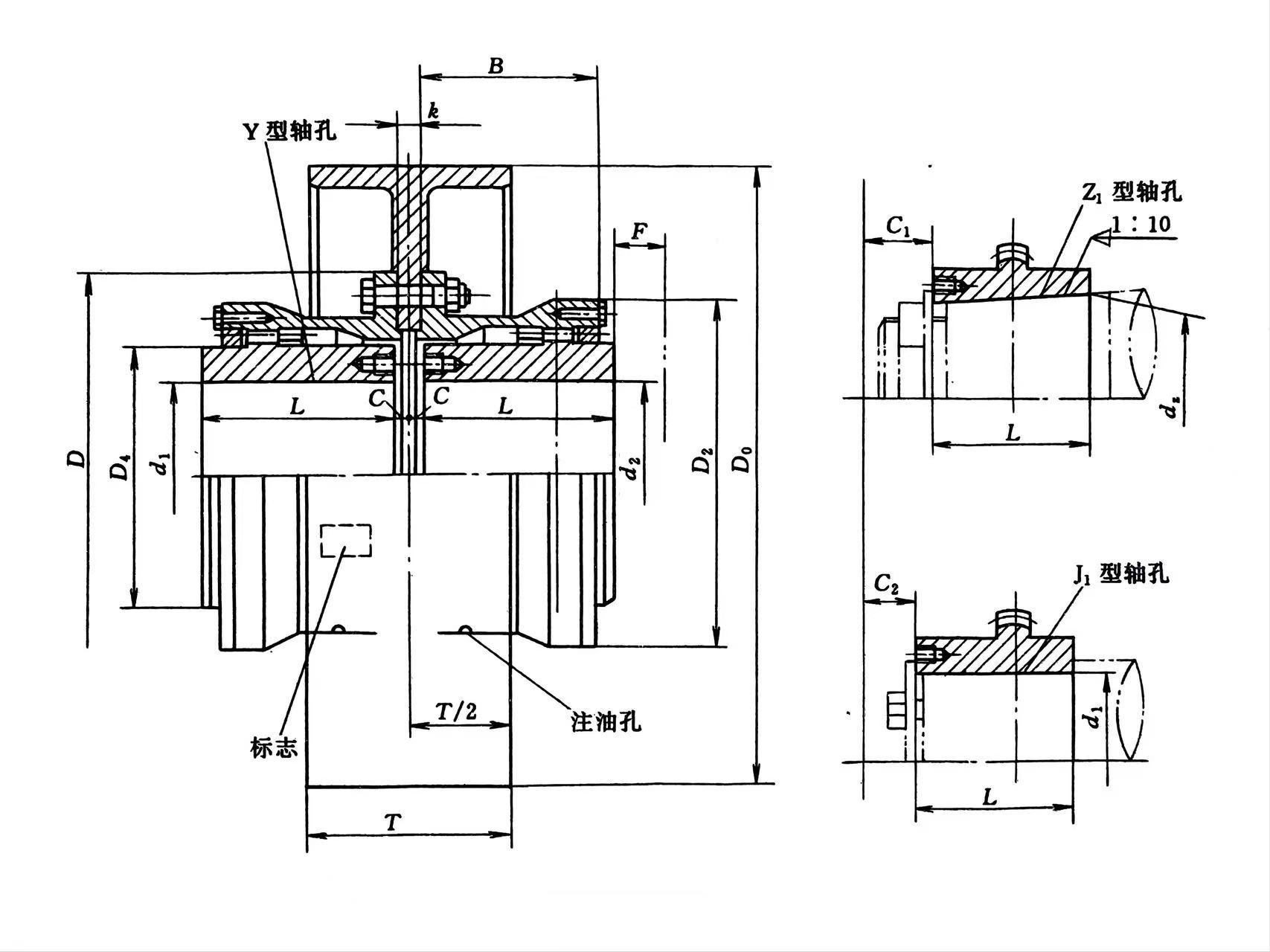

exemplar	Nominal torque Tn/N.m	Licet celeritas n/r.min-1	Scapus diametri d1\d2	Hastile longitudo L		D0	D	D2	D4	B	F	C	C1	C2	pondus m/kg	momentum inertiae I/kg.m2	Adipe dosis lubrica /ml
				Y	J1,Z1
WGZ1	710	4000	12,14	32	--	160 200 250	122	98	60	58	30	30	--	--	5.62	0.0078	0.11
			16,18,19	42								20
			20,22,24	52								10
			25,28	62	44							3	19	18
			30,32,35,38	82	60								23	12
			40,42	112	84								29	12
WGZ2	1250	4000	22,24	52	--	200 250 315	150	118	77	68	30	20	--	--	9.65	0.022	0.12
			25,28	62								10
			30,32,35,38	82	60							3	23	16
			40,42,45,48,50,55,56	112	84								29	16
WGZ3	2500	4000	22,24	52	--	200 250 315	170	140	90	80	30	33	--	--	16.5	0.047	0.2
			25,28	62								23
			30,32,35,38	82	60							3	23	25
			40,42,45,48,50,55,56	112	84								29	16
			60,63	142	107								36
WGZ4	4500	3000	30,32,35,38	82	--	250 315 400	200	160	112	90	30	13	--	--	25.3	0.098	0.28
			40,42,45,48,50,55,56	112	84							3	29	17
			60,63,65,70,71,75	142	107								36
			80	172	132								41
WGZ5	7100	3000	30,32,35,38	82	--	315 400	225	180	128	100	30	23	--	--	34.7	0.174	0.45
			40,42,45,48,50,55,56	112	84							3	29	19
			60,63,65,70,71,75	142	107								36
			80,85,90	172	132								--
WGZ6	10000	3000	32,35,38	82	--	315 400	245	200	145	112	30	35	--	--	51.3	0.29	0.65
			40,42,45,48,50,55,56	112								5
			60,63,65,70,71,75	142	107								38	20
			80,85,90,95	172	132								43
			100	212	167								48
WGZ7	14000	2500	32,35,38	82	--	400 500	272	230	160	122	30	45	--	--	68	0.53	0.8
			40,42,45,48,50,55,56	112								15
			60,63,65,70,71,75	142	107							5	38	20
			80,85,90,95	172	132								43
			100,110	202	167								48
WGZ8	20000	2500	55,56	112	--	400 450	290	245	176	136	30	29	--	--	79	0.71	0.95
			60,63,65,70,71,75	142	107							5	38	34
			80,85,90,95	172	132								43	20
			100,110,120,125	212	167								48	20
WGZ9	25000	2000	65,70,71,75	142	107	400 500 630	315	265	190	140	30	5	38	38	106.5	1.05	1.3
			80,85,90,95	172	132								43	28
			100,110,120,125	212	167								48
			130,140	252	202								53
WGZ10	40000	2000	75	142	--	400 500 630	355	300	225	165	30	28	--	--	159	1.74	1.6
			80,85,90,95	172	132							5	43	38
			100,110,120,125	212	167								48	28
			130,140, 150	252	202								53
			160	302	242								63
WGZ11	56000	1700	85,90,95	172	--	500 630 710	412	345	256	180	40	15	--	--	215	3.67	5
			100,110,120,125	212	162							8	51	32
			130,140, 150	252	202								56
			160,170,180	302	242								--
WGZ12	80000	1700	120,125	212	162	500 630 710	440	375	288	207	40	8	51	45	303	6.4	3.4
			130,140, 150	252	202								56	32
			160,170,180	302	242								66
			190,200	352	282								76
WGZ13	112000	1700	140,150	252	202	630 710	490	425	320	235	50	8	56	38	391	10.45	4.4
			160,170,180	302	242								66	32
			190,200,220	352	282								76
WGZ14	160000	1500	160,170,180	302	242	710 800	545	462	362	265	50	10	68	32	523	17.48	6.4
			190,200,220	352	282								78
			240,250,260	410	330								--	10

Describe

Coniunctio calces est summus torques mechanicus connector pro spiculis non collineis, utens phaleris interni/externi dentes in manicatis ut potestatem transmittat dum compensat pro angulari, radiali et axiali misalignment, ut specimen pro gravibus usibus industrialibus sicut mola ferrea, soleatus et vectores in quibus densitas et firmitas magnae potentiae cruciantur, licet ad longitudinis lubricationem et sustentationem exigat.

Quomodo operatur

Components: Duae axillae (cum dentibus calceis externis) singulis hastili coniunctae manicis (cum dentibus calces internis).

Misalignment Compensatio: Dentes calces motus permittunt, flexo ad angularis (late-ad- latus), radialis (offset), et misalignment axialem (finem-ad-finem) inter spicula.

Torque Transmissio: Alta superficies contactus inter dentes calces coronatos efficientem praebet, summus torques potentiae translatio cum rigore torsionali eximia.

Key Features & Beneficia

Princeps Torque: Capax tractandi altissima onera torques.

Foedus: vim altam ad pondus praebet rationem, in stricta spatia congruens.

Reliable: dum vitam commodat cum honesta lubricatione.

Versatile: Available in variis conformationibus (unum/duplex certamen, medietates rigidae/flexibiles) pro diversis necessitatibus.

Applications

Volvendum agit (ferrum, chartam industrium)

Pumps, fans, TRADUCTOR

Potentia generationis armorum

Tutela

Postulat periodicum lubricationem (uncturam) ad dentes calces tuendos.

Proprium alignment durante institutionem criticam ad fidem et ad diuturnitatem.
