Oldham chalybs labens immaculatam coitu clamping genus bonum lapsum resistentia corrosio resistentia maior rigiditas

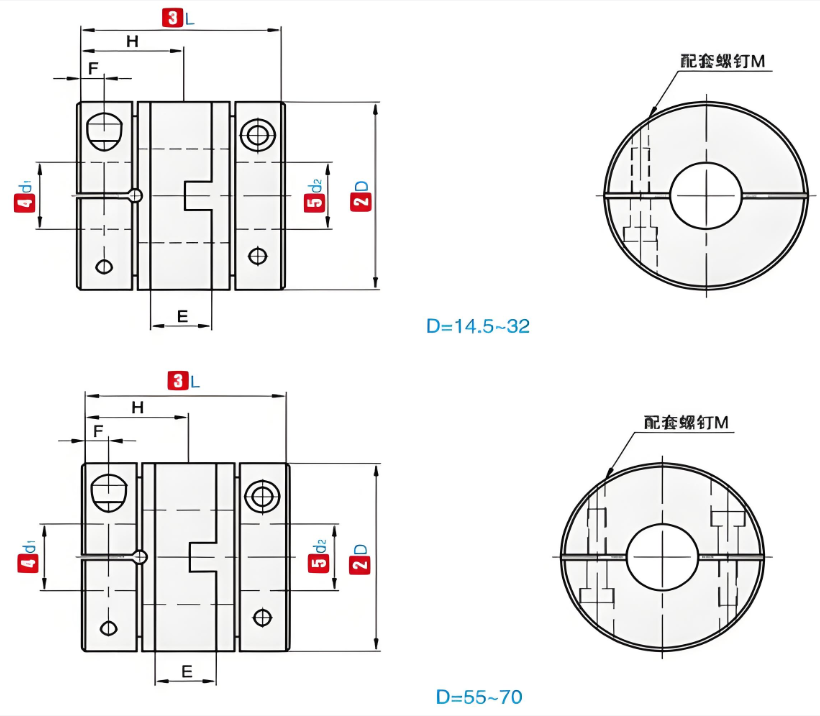

代号

nomen codice

D

L

常用D1/D2 内径尺寸      Vexillum Diametri interioris(mm)

E

F

H

M

拧紧扭矩

Torque tensis (N.m)

CPHCG

14.5

18.4

4 5 6 6.35

5.5

2.5

8.9

M2.5

0.8

16.8

24.4

4 5 6 6.35

6.2

3.3

12

M3

1.2

20

27.2

5 6 6.35 7 8 9 9.525 10

7.3

3.9

13.4

M3

1.2

26

30.4

5 6 6.35 7 8 9 9.525 10 11 12

7.5

4

15

M4

2.5

30

33

5 6 6.35   8 9 9.525 10 11 12 12.7 14

8.8

4.3

16

M4

2.5

34

34

5 6 6.35   8 9 9.525 10 11 12 12.7 14 15 16

8.5

4.3

16.5

M4

2.5

38

39.5

5 6 6.35   8 9 9.525 10 11 12 12.7 14 15 16 17 18 19 20

9.7

5.3

19.5

M5

5

45

46

8 9         10 11 12 12.7 14 15 16 17 18 19 20

13.6

5.8

22.5

M5

5

55

57

10 11 12 12.7 14 15 16 17 18 19 20 20 24 25

15.4

7.0

28

M6

8

代号

nomen codice

D

L

额定扭矩    rating torque(N.m)

容许偏心     Sine bimas(mm)

Sine sem (∠°)

Sine articulatio deviationis (mm)

Sine RPM

Static torsional rigorem (N.m/rad)

惯性矩          Momentum inertiae(N.m)

Weight (g)

CPHCG

14.5

18.4

3

0.5

0.6

±0.20

8000

750

1.5x10 ^-6

17

16.8

24.4

5

6500

1000

6.6x10 ^-6

30

20

27.2

7

5500

2000

1.4x10 ^-5

48

26

30.4

10

0.8

4500

3800

6.6x10 ^-5

90

30

33

24

1

4500

5000

1.85x10 ^-4

120

34

34

32

3500

7000

2.0x10 ^-4

172

38

39.5

50

3500

10000

4.5x10 ^-4

250

45

46

50

0.5

7000

35000

4.5x10 ^-4

450

55

57

75

1.5

7000

52000

5.7x10 ^-4

800
