Specification

Compensat magna angularis Misalignment

Foedus Design cum High Load Capacity

Princeps Transmission Efficens

Princeps Reliability et Simplex Sustentacionem

Idoneum pro duri Opera

In applicationibus practicis collocantur in grave officium, medium officium, leve officium, et species parvae mediocres quae propter magnitudinem torques transmissae sunt. Gravis officium universalis iuncturae plerumque adhibentur in machinis metallurgicis, machinis gravibus, machinis petrolei, machinis constructionis, sublatione et translatione machinarum, etc. Medium officium et officium universalis iuncturae saepe adhibentur in vehiculis sicut autocineta et locomotiva, ac in levi machinarum industrialium. Coniunctiones universales parvae amplissimae principaliter adhibentur ad motum transmissionis, in praecisione machinis et machinationibus moderandis.

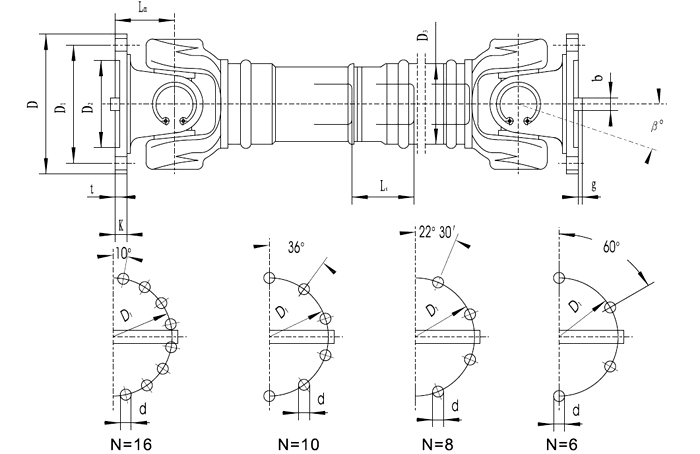

P/N	Tactical Diameter D/mm	Nominal torque Tn/kN.m	Lassitudine torques Tf/kN.m	Angularis Misalign ment β/(。）	Dimension(mm)										Axial Displacement Ls/mm	Dynamicum momentum InertiaeI (kg·m2)		Pondus ( Kg)
					Lmin	D1 (js11)	D2 (H7)	D3	Lm	n-d*	K	T	b (h9)	g		Lmin	Umquam 100 mm incrementi	Lmin	Umquam 100 mm incrementi
SWC180CH1	180	12.5	6.3	≤25	925	155	105	114	110	8-17	17	5	-	-	200	0.181	0.0070	74	2.8
SWC180CH2					1425										700	0.216		104
SWC225CH1	225	40	20	≤15	1020	196	135	152	120	8-17	20	5	32	9.0	220	0.561	0.0234	132	4.9
SWC225CH2					1500										700	0.674		182
SWC250CH1	250	63	31.5	≤15	1215	218	150	168	140	8-19	25	6	40	12.5	300	1.016	0.0277	190	5.3
SWC250CH2					1615										700	1.127		235
SWC285CH1	285	90	45	≤15	1475	245	170	194	160	8-21	27	7	40	15.0	400	2.156	0.0510	300	6.3
SWC285CH2					1875										800	2.360		358
SWC315CH1	315	125	63	≤15	1600	280	185	219	180	10-23	32	8	40	15.0	400	3.812	0.0795	434	8.0
SWC315CH2					2000										800	4.150		514
SWC350CH1	350	180	90	≤15	1715	310	210	267	194	10-23	35	8	50	16.0	400	7.663	0.2219	672	15.0
SWC350CH2					2115										800	8.551		823
SWC390CH1	390	250	125	≤15	1845	345	235	267	215	10-25	40	8	70	18.0	400	12.730	0.2219	817	15.0
SWC390CH2					2245										800	13.617		964
SWC440CH1	440	355	180	≤15	2110	390	255	325	260	16-28	42	10	80	20	400	22.540	0.4744	1312	21.7
SWC440CH2					2510										800	24.430		1537
SWC490CH1	490	500	250	≤15	2220	435	275	325	270	16-31	47	12	90	22.5	400	33.970	0.4744	1554	21.7
SWC490CH2					2620										800	35.870		1779
SWC550CH1	550	710	355	≤15	2585	492	320	426	305	16-31	50	12	100	22.5	500	72.790	1.3570	2585	34
SWC550CH2					3085										1000	79.570		3045
