Wholesale RSK-CV06-105 EL High-celeritate praecisione CV Copulatio in vehiculo test scamnum

Home / Products / Constans Velocitas (CV) Joint / Type PROLAPSIO / RSK-CV06-105 EL High-celeritate praecisione CV Copulatio in vehiculo test scamnum
RSK-CV06-105 EL High-celeritate praecisione CV Copulatio in vehiculo test scamnum

RSK-CV06-105 EL High-celeritate praecisione CV Copulatio in vehiculo test scamnum

Contact Us
  • Specification
  • Describe
Specification

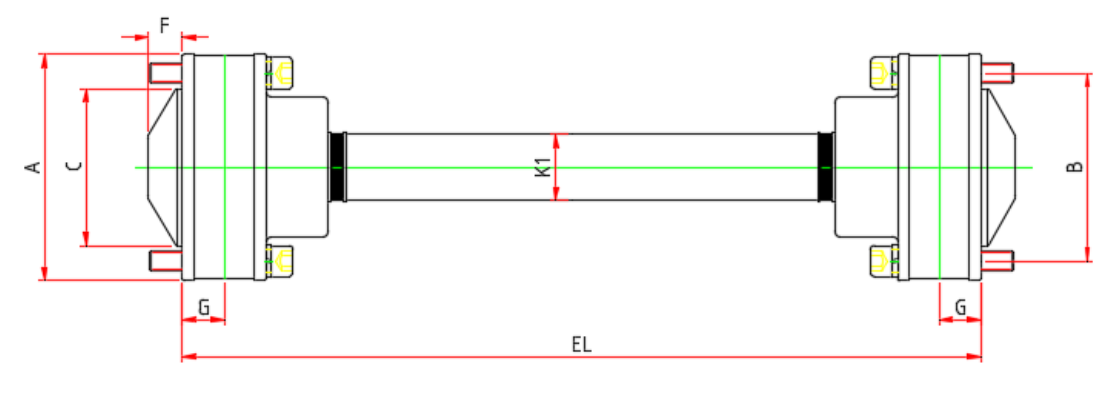

Norm celeritas rpm Angulus ° ΦA-0.05 mm ΦB ±0.1mm ΦC  0.05mm G mm φK1 mm EL mm Expansion mm
05 8000 10 83 74 64 10.5 22 130 16
10 8000 10 94 80 64 15 24 150 12
13 8000 10 99 86 67.5 19 26 160 22
15 8000 10 108 94 81 20 28 160 16
21 8000 10 128 108 90 23 32 210 24
30 5000 10 148 128 112 24 45 245 25
32 5000 10 180 155.5 136 24 50 300 25

Norm N.m M
Kg 		ego kgm² Ct
KN.m/rad 		M
Kg 		I
Kgm 		Ct
KN.m/rad
05 1500 3 0.0012 21.8 0.3 0.00002 18.5
10 2300 4 0.0038 38.3 0.36 0.00003 26.2
13 2900 5 0.0048 47.1 0.42 0.00004 36.1
15 3700 6 0.0073 49.7 0.48 0.00005 48.6
21 6000 9 0.0161 67.4 0.63 0.00008 82.9
30 9200 15 0.0340 209.1 1.25 0.00032 324.4
32 13200 23 0.0778 211.6 1.54 0.00048 494.4

Torque = Maximum static torque
Celeritas = Maxima celeritas (pro velocitatibus majoribus quam in mensa, consilium separatum requiritur) Angulus = Maximus angulus aptus (non utendum ad modum)
Pondus = minimum pondus inertiae = minimum
Pondus ultricies = per 100mm incremento
Rigiditas factor excambium = per 100mm incrementum EL = Usus longitudo ± Expansio
