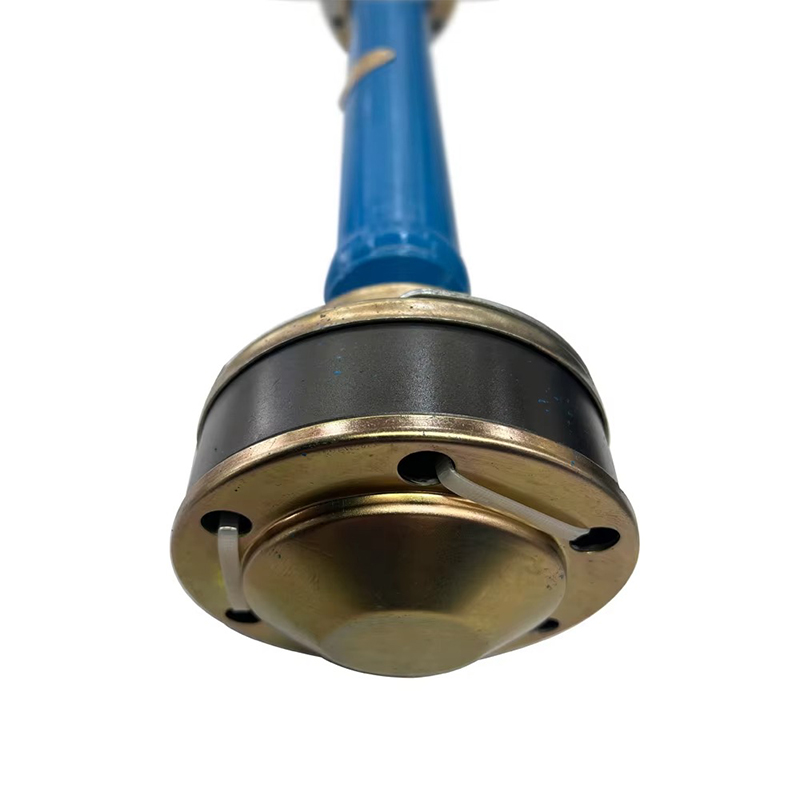

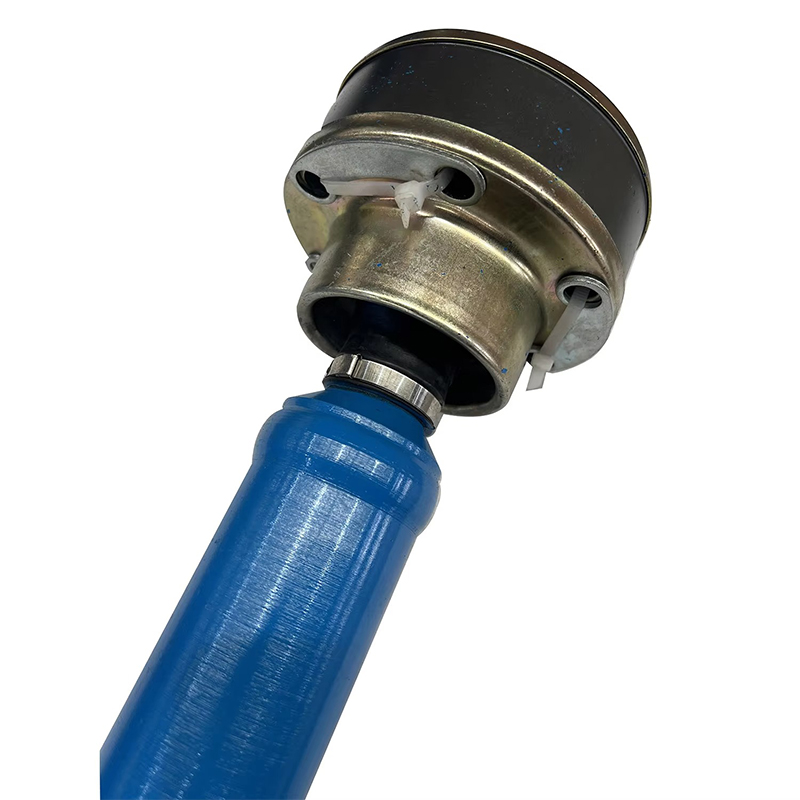

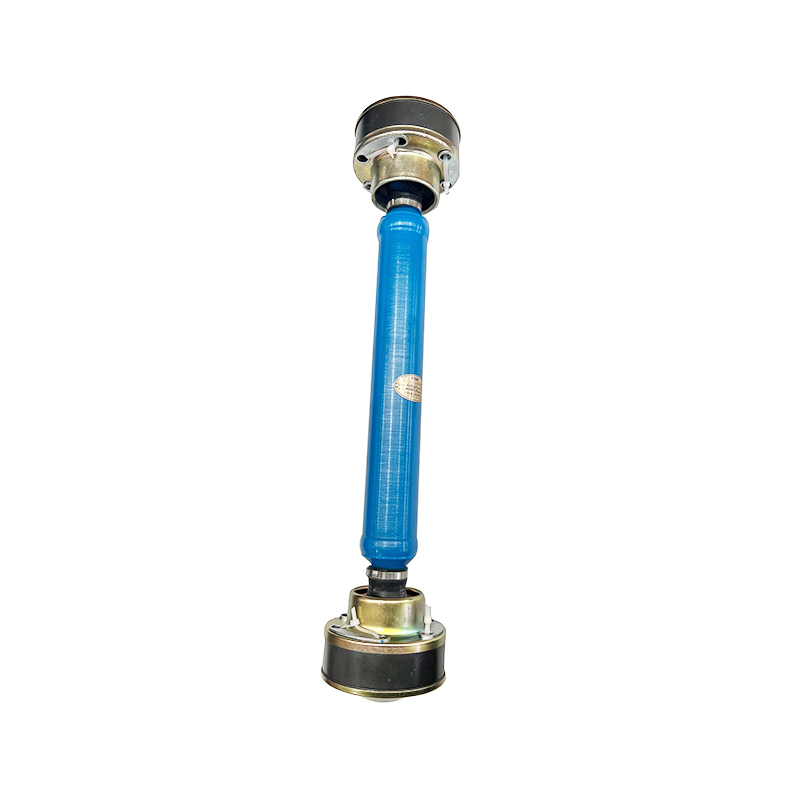

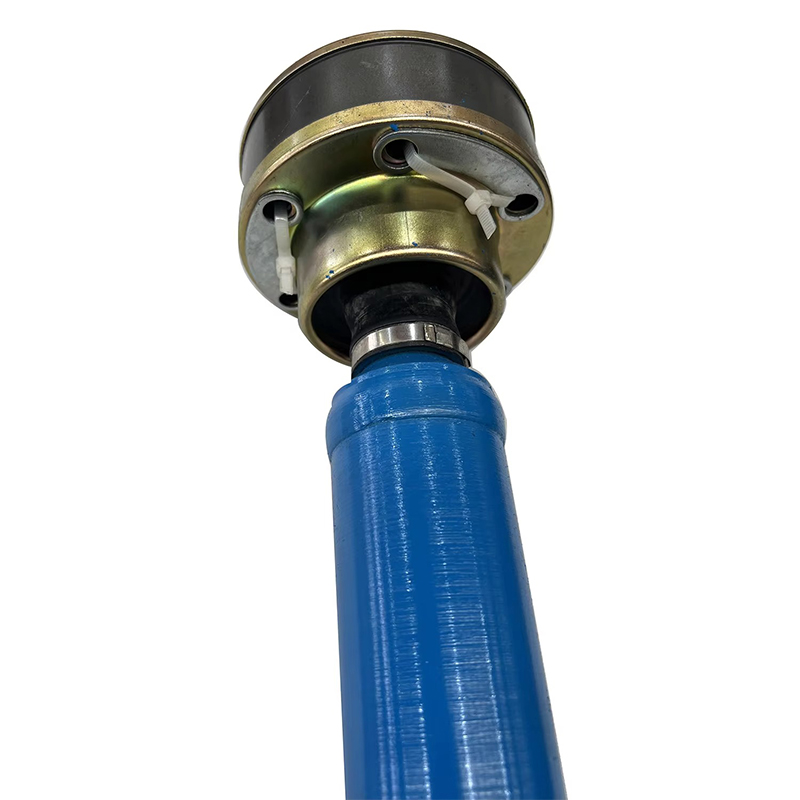

RSK-CV06-111 EL Abrasion-repugnans telescopic Constans Velocitas Articulus ad test scamnum

RSK-CV06-111 EL Abrasion-repugnans telescopic Constans Velocitas Articulus ad test scamnum

Contact Us
  • Specification
  • Describe
Specification

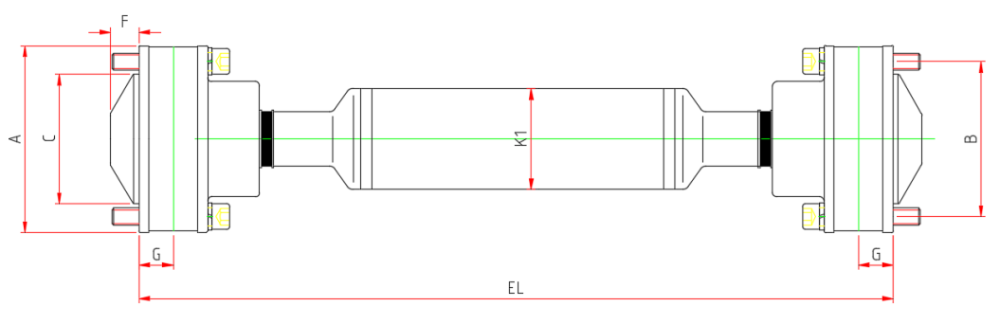

Norm celeritas rpm Angulus ° ΦA-0.05 mm ΦB ±0.1mm ΦC  0.05mm G mm φK1 mm EL mm Expansion mm
05 8000 10 83 74 64 10.5 40 190 16
10 8000 10 94 80 64 15 50 240 12
13 8000 10 99 86 67.5 19 50 250 22
15 8000 10 108 94 81 20 60 270 16
21 8000 10 128 108 90 23 70 280 24
30 5000 10 148 128 112 24 70 340 25
32 5000 10 180 155.5 136 24 90 420 25

Norm N.m M
Kg 		ego kgm² Ct
KN.m/rad 		M
Kg 		I
Kgm 		Ct
KN.m/rad
05 580 3 0.0012 18.6 0.19 0.00007 69.6
10 1300 4.3 0.0040 31.4 0.35 0.00019 197.9
13 1300 5 0.0050 30.3 0.35 0.00019 197.9
15 2500 6.6 0.0080 49.2 0.42 0.00034 352.3
21 3500 10.3 0.0172 76.5 0.65 0.00071 730.4
30 3500 16.3 0.0353 172.2 0.65 0.00071 730.4
32 6000 25.4 0.0824 174 0.85 0.00157 613.5

Torque = Maximum static torque
Celeritas = Maxima velocitas (maior quam celeritas in mensa, consilium separatum desideratur) Angulus = Maximum angulum coeuntibus (non utendum ad modum)
Pondus = minimum pondus = minimum pondus inertiae = maximum longitudinis
Pondus ultricies = per 100mm incrementi
Compensatio rigoris factor per 100mm incrementi EL = Longitudo in usu ± Expansion Expansion
